Opened 10 years ago
Closed 10 years ago
#10515 closed defect (duplicate)
AlignInLine action gives unexpected results with circular ways
Reported by: | DeeHants | Owned by: | team |
---|---|---|---|
Priority: | normal | Milestone: | |
Component: | Core | Version: | tested |
Keywords: | aligninline circular_way | Cc: | bastiK, Balaitous |
Description (last modified by )
Following on from case #9605, the new code to pick the furthest nodes along a way (change r6894) gets "confused" when dealing with a circular way.
In my case, one of the end nodes in my selection was the first/last node in the way. All other nodes were towards the end of the way.
This resulted in it picking the "first" node and the penultimate node as the "furthest" away instead of the string of 4 consecutive nodes:
What steps will reproduce the problem?
- Create a circular way with nodes a,b,c,d,e,f,g,a
- Select nodes e,f,g,a
- perform the AlignInLine action
What is the expected result?
The nodes should have been aligned in a line between e and a (Both as furthest distance, and seemingly furthest along the way)
What happens instead?
A line is calculated between g and a with all other nodes aligned to that.
Repository Root: http://josm.openstreetmap.de/svn Build-Date: 2014-08-31 21:55:55 Last Changed Author: Don-vip Revision: 7480 Repository UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b URL: http://josm.openstreetmap.de/svn/trunk Last Changed Date: 2014-08-31 23:51:24 +0200 (Sun, 31 Aug 2014) Last Changed Rev: 7480 Identification: JOSM/1.5 (7480 en_GB) Windows 8 32-Bit Memory Usage: 328 MB / 989 MB (36 MB allocated, but free) Java version: 1.7.0_25, Oracle Corporation, Java HotSpot(TM) Client VM Dataset consistency test: No problems found Plugins: - AddrInterpolation (30416) - DirectDownload (30416) - FixAddresses (30416) - OpeningHoursEditor (30609) - gpxfilter (30416) - imagery_offset_db (30534) - imageryadjust (30416) - notes (v0.9.4) - tagging-preset-tester (30592) - turnrestrictions (30454) Last errors/warnings: - W: org.openstreetmap.josm.plugins.ohe.parser.ParseException: Encountered "<EOF>" at line 1, column 1.
Attachments (2)
Change History (6)
by , 10 years ago
Attachment: | AlignInLine oddity.png added |
---|
by , 10 years ago
Attachment: | Broken align.osm added |
---|
Test case OSM file that demonstrates the issue.
comment:1 by , 10 years ago
Description: | modified (diff) |
---|
comment:2 by , 10 years ago
Cc: | added |
---|---|
Description: | modified (diff) |
comment:3 by , 10 years ago
Description: | modified (diff) |
---|
comment:4 by , 10 years ago
Resolution: | → duplicate |
---|---|
Status: | new → closed |
Closed as duplicate of #10050.

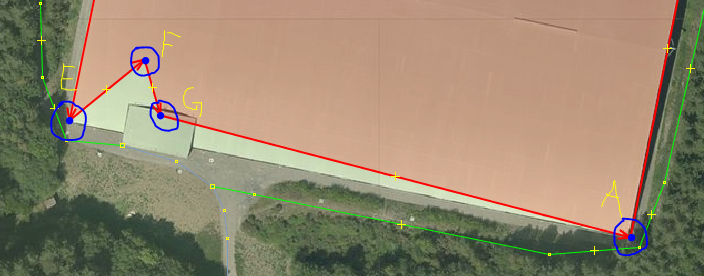

Screenshot of circluar ways that triggers the problem
