MapWithAI

Allows the use of MapWithAI data in JOSM.

Features

  • Located in Download Data: Download arbitrary data (non-cropped at this time) in the Download from MapWithAI API tab -- note that you cannot download multiple MapWithAI layers
  • Located in data menu
    • MapWithAI: Download data: Download MapWithAI data from the current download area (if more than one layer, a dialog will ask for a layer to be selected). This is dependent upon configured URLs (defaults to MapWithAI).
    • MapWithAI: Add selected data: Add the selected data from the MapWithAI data layer to a OSM Data Layer
    • MapWithAI: Attempt to merge potentially duplicate ways (expert mode only): Attempt to merge potentially duplicate ways. Done automatically for MapWithAI data, but is available for other uses (may or may not work as expected).
  • Remote Control + Upload Hooks
  • Map paint style
    • Automatically added by the plugin
    • Can be automatically toggled on/off with the MapWithAI layer (this requires the MapWithAI plugin)
    • Can show new, modified, or pre-existing MapWithAI data (depends upon the source tag).
  • Live counter of objects added with MapWithAI
  • Preferences
    • Set MapWithAI url(s)
    • Choose whether or not MapWithAI automatically switches layers
    • Choose how many features you want to add per action
    • Choose whether or not to merge buildings with address nodes (note: this only applies to buildings that will have one and only one address inside it)
    • Change tags (expert mode only) that you want to be replaced. For example, highway=residential can become disused:highway=road. This replacement only occurs during download.

Installation

Mandatory

  1. see Help/Preferences/Plugins for details)

Paintstyle (Plugin should automatically add and enable it)

  1. Start JOSM
  2. Open JOSM Preferences
  3. Go to Map Settings (the globe with a grid over it)
  4. Go to Map Paint Styles
  5. Add MapWithAI from the Available style list
  6. Press OK

Basic Usage

Please note that the screen shots were taken with Expert Mode checked in JOSM preferences. You may not see all the actions available without that check, the missing actions may be buggy or for a niche audience.

  1. Prepare the area of interest as usual by downloading OSM data and choosing a background imagery.

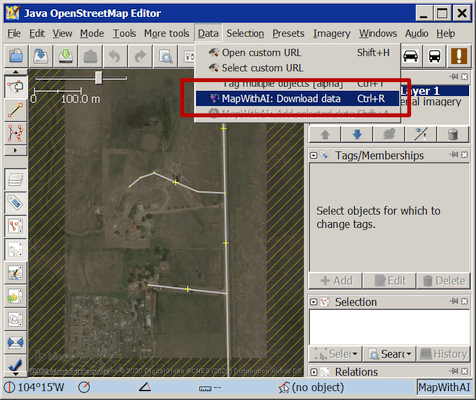

  2. Download data from MapWithAI by going to the Data -> MapWithAI: Download Data. The default keyboard shortcut is Ctrl+R (Cmd+R on Mac).
    Download Data

    This simply uses the OSM data boundaries for the MapWithAI download too. If several data layers are loaded, a dialog will ask from which layer the data boundaries should give the target for the MapWithAI download. MapWithAI holds all of its data in one single layer.
  1. Switch to the MapWithAI layer if it is not already activated.
  2. Select objects to add to the topmost OSM data layer.
  3. Add the selected objects by going to Data -> MapWithAI: Add selected data (default keyboard shortcut is Shift+A)

Add selected data

Advanced Usage

The MapWithAI: Attempt to merge potential duplicate ways is available in expert mode only. It attempts to merge potentially duplicate ways. Done automatically for MapWithAI data, but is available for other uses (may or may not work as expected).

Preferences

Preference Explanation Expert Mode
API URLs URLs for MapWithAI service (if blank, resets to default after JOSM restart) no
Automatically switch layers When adding data switch layers automatically (default yes) no
Maximum features (add) The maximum number of objects that can be selected in the MapWithAI Layer (default 5) no
Merge address nodes and buildings Merge buildings added from the MapWithAI layer with one single existing address node inside the building on the OSM layer (default yes) no
Replacement tags Table of keys to replace (default is empty) yes

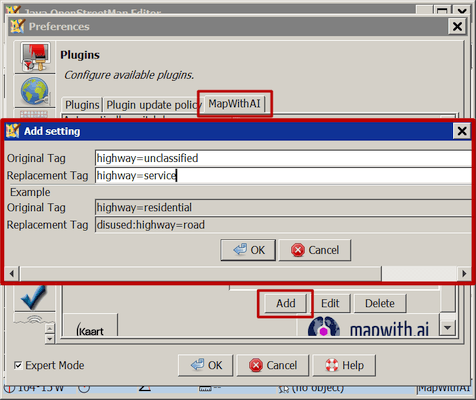

The table of replacement tags has Key and Value columns in the format of key=TAG=VALUE and value=TAG=VALUE, for example:

Add Tag

MapWithAI has an own tab in the Plugins register in the JOSM Preferences dialog.

MapWithAI Preferences

Remote control

If JOSM is running with remote control enabled and the MapWithAI plugin is installed, you can go to http://localhost:8111/features?q=mapwithai .

Remote control only affects the current MapWithAI layer.

Upload Hooks

  • mapwithai: The count of OSM objects added and still present from the MapWithAI layer (splits and deletions may cause this to be inaccurate)
  • mapwithai:options: A semi-colon (;) separated list of non-default options
    • version: The version of the MapWithAI plugin. Added in case there is a severe bug so it can be blacklisted.
    • task: The bounding box for a task, if one is detected
    • maxadd: The maximum number of MapWithAI objects that are permitted to be added per operation. <1 allows any number of objects to be added.
    • url: Shows non-default urls. Always the last mapwithai:option.

Advanced Settings

  • mapwithai.conflation.simplifyway -- threshold at which to determine if a way may need to be simplified. Defaults to 0.5.
  • mapwithai.conflation.simplifywaynodepercentagerequired -- The percentage of nodes at which point the user is asked if the way should be simplified. Defaults to 20 (percent).

Building

Building and Testing
