Modify

Opened 10 years ago

Closed 10 years ago

#8254 closed enhancement (fixed)

Need a "get-capabibilty" - type bookmark for wms

Reported by: iav Owned by: team
Priority: normal Milestone:
Component: Core Version:
Keywords: wms bookmark Cc:

Description

Need a way to add into layers menu bookmark for a "GetCapabilities" - type wms query. Result of this query should open as a sub-menu of bookmark menu.

For example, I'd like to add bookmark for Geofabric layers http://tools.geofabrik.de/osmi/view/addresses/wxs?SERVICE=WMS&VERSION=1.1.1&REQUEST=GetCapabilities - and then chose layers draving time.

Same for local server where I place planning documents aligned with qgis and then shared with mapserver - now I need to add every new plan into bookmarks manually, and have very long menu with all my plans.

Attachments (1)


Download all attachments as: .zip

Change History (14)

comment:1 Changed 10 years ago by stoecker

See also #7953.

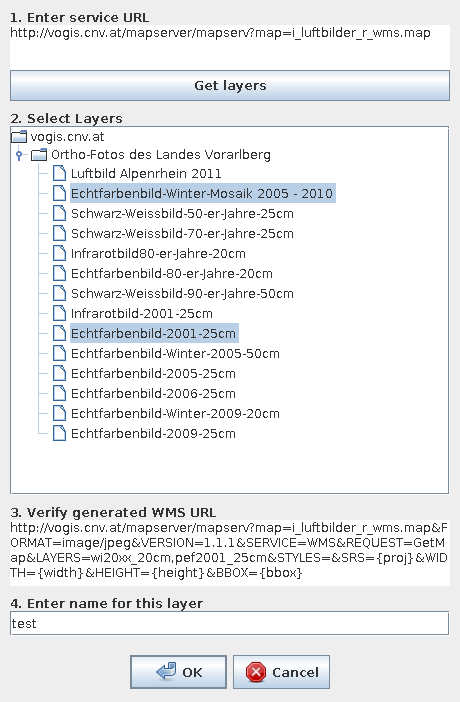

Changed 10 years ago by simon04

Attachment: newwms.png added

comment:2 Changed 10 years ago by simon04

Work in progress … As I needed to refactor a lot of WMS/TMS code, a different, (slimmer?, cleaner?) UI for adding a new layer was little effort. I hope you like it. :-)


comment:3 Changed 10 years ago by iav

Yes, looks good.
Hope it will copy layer description from server in case nothing typed in name field? :)

comment:4 Changed 10 years ago by stoecker

Please also handle #7953. While capabilities based selection is fine I think hand-tuning <layer> is necessary as well, as we are not always allowed to use all layers. I would like to have a "sub-menu to select layers" and otherwise use default layers for WMS entries. Also <layer> could be used for "useful layer groups".

One ugly part in UI becoming better. Fine. Never liked the WMS-UI, but it was better than the previous state...

comment:5 Changed 10 years ago by Don-vip

Ah nice. I don't like the current UI neither and was thinking for a long time to change it. One thing I'd like to see is a live preview of the layers bounds, without having to click on the "see bounds" button. Something like the bounds preview of imagery sources in the preferences.

comment:6 Changed 10 years ago by Don-vip

One other thing: when a single layer is selected, prefill the name with the name given by the WMS server.

comment:7 Changed 10 years ago by Don-vip

Check also if it works if the user clicks twice on the "get layers" button The current behaviour is disturbing :)

comment:8 in reply to:  4 Changed 10 years ago by simon04

Replying to stoecker:

Please also handle #7953. While capabilities based selection is fine I think hand-tuning <layer> is necessary as well, as we are not always allowed to use all layers. I would like to have a "sub-menu to select layers" and otherwise use default layers for WMS entries. Also <layer> could be used for "useful layer groups".

On the one hand this brings some complication as each layer may have different SRSes. On the other hand I don't really see the point in this feature: naïvely I'd say that you want to either add a fully predefined background imagery (as the current WMS layers) or chose an arbitrary selection of the provided layers. Your suggested subselection could also be implemented in terms of string manipulation. I think I'll leave out this feature for now …

Last edited 10 years ago by simon04 (previous) (diff)

comment:9 Changed 10 years ago by simon04

In 5617/josm:

see #8254 - new imagery entry wms_endpoint: Store WMS endpoint only, select layers at usage

comment:10 Changed 10 years ago by simon04

This is a working implementation for the basic feature. To be done:

  • suggesting layer name
  • separate icons (now the plus is used twice in the preference dialog)
  • discuss #7953
  • live bounds preview (I personally do not consider this particularly important since I typically know in advance the region of the WMS layer I'm currently adding)
  • test/investigate: click twice on the "get layers" button

comment:11 Changed 10 years ago by simon04

In 5618/josm:

see #8254 - adapt maps.xsd for wms_endpoint

comment:12 Changed 10 years ago by simon04

In 5650/josm:

see #8254 - suggest WMS layer name based on selection

comment:13 Changed 10 years ago by simon04

Resolution: fixed
Status: newclosed
