Text in download menu, dialogs panel, and presets rendered as text rather than icons appears too small to be readable. Other text (e.g. menu bar, tool tips, title bars, initial info screen) is okay.

[aenetanthony (at) gmail (dot) com]

What steps will reproduce the problem?

Unknown. Problem did not occur on previous boots of JOSM, then started occuring without further user input upon starting JOSM (via desktop shortcut).

What is the expected result?

Text renders at the same size as the text in the menu bar, the initial info screen, tool tips, etc.

What happens instead?

Text in dialogs panel, download menu, preferences menu, and the text shown for presets which don't have icons (such as those from the Name Suggestion Index) all renders nearly twice as small as it should.

Please provide any additional information below. Attach a screenshot if possible.

Ticket was created with version 19253 but problem persists on updated version 19265.
Screenshots will be attached.

Revision:19253
Build-Date:2024-10-31 17:41:55

Identification: JOSM/1.5 (19253 en) Windows 11 64-Bit
OS Build number: Windows 10 Pro 23H2 (22631)
Memory Usage: 592 MB / 12176 MB (188 MB allocated, but free)
Java version: 21.0.5+11-LTS, Azul Systems, Inc., OpenJDK 64-Bit Server VM
Look and Feel: com.sun.java.swing.plaf.windows.WindowsLookAndFeel
Screen: \Display0 2256x1504x32bpp@60Hz (scaling 1.50×1.50)
Maximum Screen Size: 2256×1504
Best cursor sizes: 16×16→48×48, 32×32→48×48
System property file.encoding: UTF-8
System property sun.jnu.encoding: Cp1252
Locale info: en_US
Numbers with default locale: 1234567890 -> 1234567890
VM arguments: [-Djpackage.app-version=1.5.19253, -XX:MaxRAMPercentage=75.0, --add-modules=java.scripting,java.sql,javafx.controls,javafx.media,javafx.swing,javafx.web, --add-exports=java.base/sun.security.action=ALL-UNNAMED, --add-exports=java.desktop/com.sun.imageio.plugins.jpeg=ALL-UNNAMED, --add-exports=java.desktop/com.sun.imageio.spi=ALL-UNNAMED, --add-opens=java.base/java.lang=ALL-UNNAMED, --add-opens=java.base/java.nio=ALL-UNNAMED, --add-opens=java.base/jdk.internal.loader=ALL-UNNAMED, --add-opens=java.base/jdk.internal.ref=ALL-UNNAMED, --add-opens=java.desktop/javax.imageio.spi=ALL-UNNAMED, --add-opens=java.desktop/javax.swing.text.html=ALL-UNNAMED, --add-opens=java.prefs/java.util.prefs=ALL-UNNAMED, -Djpackage.app-path=%UserProfile%\AppData\Local\JOSM\JOSM.exe]

Plugins:
+ Mapillary (1786)
+ apache-commons (36349)
+ utilsplugin2 (36350)

Tagging presets:
+ https://josm.openstreetmap.de/josmfile?page=Presets/OneClick&zip=1
+ https://raw.githubusercontent.com/osmlab/name-suggestion-index/main/dist/presets/nsi-josm-presets.min.xml

Map paint styles:
+ https://josm.openstreetmap.de/josmfile?page=Styles/Lane_and_Road_Attributes&zip=1
- https://josm.openstreetmap.de/josmfile?page=Styles/Enhanced_Lane_and_Road_Attributes&zip=1

Last errors/warnings:
- 00000.714 W: extended font config - overriding 'filename.Malgun_Gothic=malgun.ttf' with 'MALGUN.TTF'
- 00000.717 W: extended font config - overriding 'filename.Myanmar_Text=mmrtext.ttf' with 'MMRTEXT.TTF'
- 00000.718 W: extended font config - overriding 'filename.Mongolian_Baiti=monbaiti.ttf' with 'MONBAITI.TTF'
- 00001.291 E: java.security.KeyStoreException: Windows-ROOT not found. Cause: java.security.NoSuchAlgorithmException: Windows-ROOT KeyStore not available
- 00012.636 E: Failed to locate image 'bus_stop'
- 00015.608 E: Failed to locate image 'bus_stop'
- 00016.262 E: Failed to locate image 'bus_stop'

[Aenet <aenetanthony@…>]

Image with downloaded data showing dialogs panel and other affected text.

[Aenet <aenetanthony@…>]

Image showing download menu with small text.

[Aenet <aenetanthony@…>]

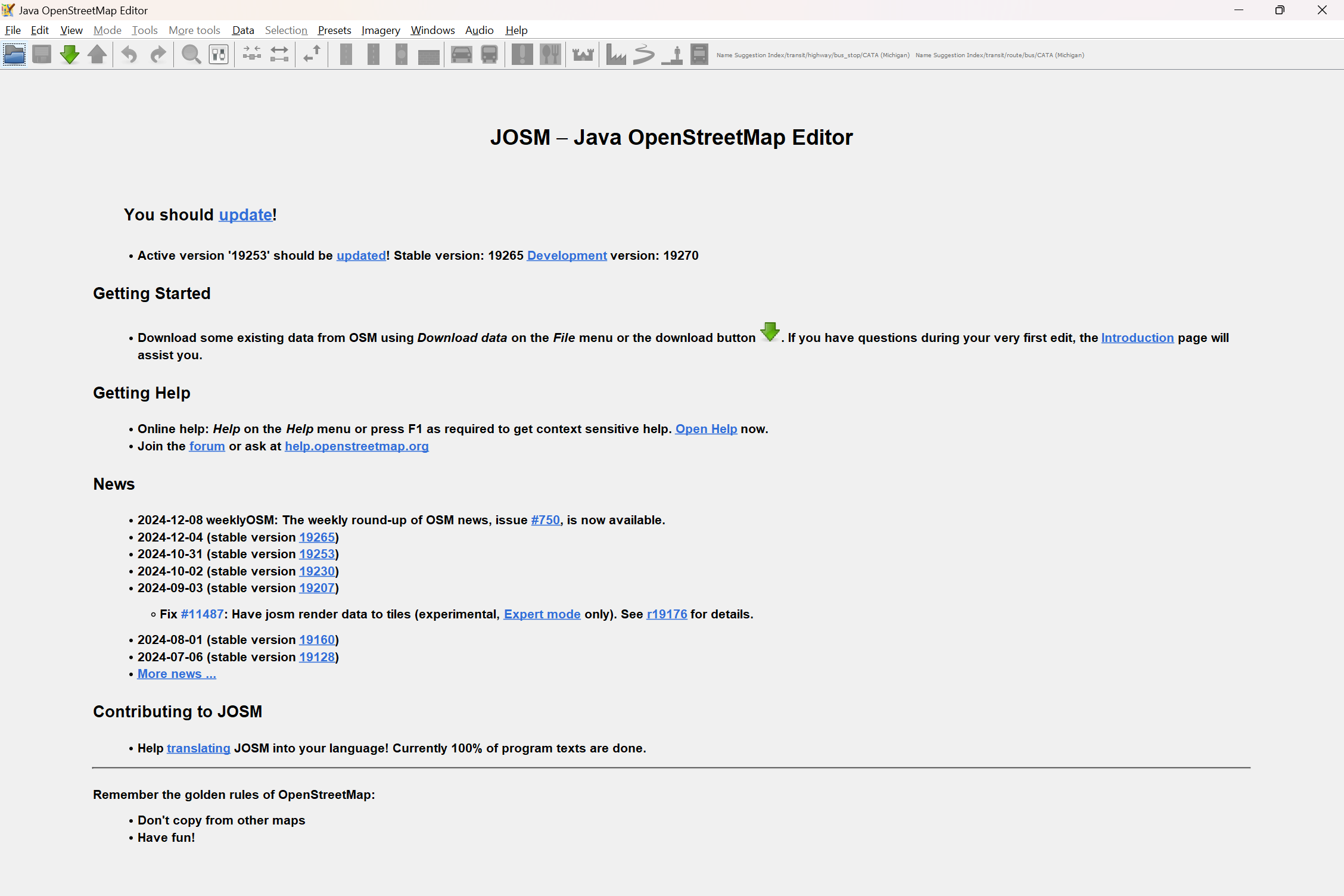

Image showing initial info menu (small text can be seen in the presets "Name Suggestion Index/...")

[Aenet <aenetanthony@…>]

Image showing download menu with small text. Updated version 19265.

[taylor.smock]

Sanity check: what does it look like when you change the LaF to Metal in Display Preferences?

EDIT: You will have to restart JOSM for the changed preference.
