Exception when loading Background Image

[syncronic]

What steps will reproduce the problem?

1. In JOSM goto menu Imagery|Import image
2. Select the included background image

What is the expected result?

Image is loaded as georeferenced background image

What happens instead?

exception

Please provide any additional information below. Attach a screenshot if possible.

Revision:18531
Build-Date:2022-08-02 12:45:38

Identification: JOSM/1.5 (18531 de) Windows 10 64-Bit
OS Build number: Windows 10 Pro 2009 (19043)
Memory Usage: 618 MB / 4068 MB (262 MB allocated, but free)
Java version: 17.0.4+8-LTS, Azul Systems, Inc., OpenJDK 64-Bit Server VM
Look and Feel: com.sun.java.swing.plaf.windows.WindowsLookAndFeel
Screen: \Display0 1920×1080 (scaling 1.50×1.50) \Display1 1920×1200 (scaling 1.50×1.50)
Maximum Screen Size: 1920×1200
Best cursor sizes: 16×16→48×48, 32×32→48×48
System property file.encoding: Cp1252
System property sun.jnu.encoding: Cp1252
Locale info: de_DE
Numbers with default locale: 1234567890 -> 1234567890
VM arguments: [-Djpackage.app-version=1.5.18531, --add-modules=java.scripting,java.sql,javafx.controls,javafx.media,javafx.swing,javafx.web, --add-exports=java.base/sun.security.action=ALL-UNNAMED, --add-exports=java.desktop/com.sun.imageio.plugins.jpeg=ALL-UNNAMED, --add-exports=java.desktop/com.sun.imageio.spi=ALL-UNNAMED, --add-opens=java.base/java.lang=ALL-UNNAMED, --add-opens=java.base/java.nio=ALL-UNNAMED, --add-opens=java.base/jdk.internal.loader=ALL-UNNAMED, --add-opens=java.base/jdk.internal.ref=ALL-UNNAMED, --add-opens=java.desktop/javax.imageio.spi=ALL-UNNAMED, --add-opens=java.desktop/javax.swing.text.html=ALL-UNNAMED, --add-opens=java.prefs/java.util.prefs=ALL-UNNAMED, -Djpackage.app-path=%UserProfile%\AppData\Local\JOSM\JOSM.exe]

Plugins:
+ ImportImagePlugin (36013)
+ apache-commons (36003)
+ ejml (35924)
+ geotools (36008)
+ jackson (36006)
+ jaxb (35952)
+ jts (36004)
+ log4j (36007)

Last errors/warnings:
- 00000.550 W: extended font config - overriding 'filename.Myanmar_Text=mmrtext.ttf' with 'MMRTEXT.TTF'
- 00000.555 W: extended font config - overriding 'filename.Mongolian_Baiti=monbaiti.ttf' with 'MONBAITI.TTF'
- 00002.634 E: java.security.KeyStoreException: Windows-ROOT not found. Ursache: java.security.NoSuchAlgorithmException: Windows-ROOT KeyStore not available
- 00046.085 E: Handled by bug report queue: java.lang.NoSuchMethodError: 'void org.ejml.dense.row.CommonOps_DDRM.mult(org.ejml.data.DMatrix1Row, org.ejml.data.DMatrix1Row, org.ejml.data.DMatrix1Row)'



=== REPORTED CRASH DATA ===
BugReportExceptionHandler#handleException:
No data collected.

Warning issued by: BugReportExceptionHandler#handleException

=== STACK TRACE ===
Thread: AWT-EventQueue-0 (23) of main
java.lang.NoSuchMethodError: 'void org.ejml.dense.row.CommonOps_DDRM.mult(org.ejml.data.DMatrix1Row, org.ejml.data.DMatrix1Row, org.ejml.data.DMatrix1Row)'
	at org.geotools.referencing.operation.matrix.GeneralMatrix.mul(GeneralMatrix.java:885)
	at org.geotools.referencing.operation.matrix.GeneralMatrix.multiply(GeneralMatrix.java:646)
	at org.geotools.referencing.datum.DefaultGeodeticDatum.getAffineTransform(DefaultGeodeticDatum.java:311)
	at org.geotools.referencing.datum.DefaultGeodeticDatum.getAffineTransform(DefaultGeodeticDatum.java:231)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.createOperationStep(DefaultCoordinateOperationFactory.java:841)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.findOperationSteps(DefaultCoordinateOperationFactory.java:1008)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.findOperations(DefaultCoordinateOperationFactory.java:343)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.createOperation(DefaultCoordinateOperationFactory.java:207)
	at org.geotools.referencing.operation.AuthorityBackedFactory.validateCandidate(AuthorityBackedFactory.java:246)
	at org.geotools.referencing.operation.AuthorityBackedFactory.findFromDatabase(AuthorityBackedFactory.java:394)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.tryDB(DefaultCoordinateOperationFactory.java:1772)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.findOperationSteps(DefaultCoordinateOperationFactory.java:1004)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.findOperations(DefaultCoordinateOperationFactory.java:343)
	at org.geotools.referencing.operation.DefaultCoordinateOperationFactory.createOperation(DefaultCoordinateOperationFactory.java:207)
	at org.geotools.referencing.operation.BufferedCoordinateOperationFactory.createOperation(BufferedCoordinateOperationFactory.java:232)
	at org.geotools.coverage.processing.operation.Resampler2D.reproject(Resampler2D.java:469)
	at org.geotools.coverage.processing.operation.Resample.doOperation(Resample.java:249)
	at org.geotools.coverage.processing.CoverageProcessor.doOperation(CoverageProcessor.java:564)
	at org.geotools.coverage.processing.CoverageProcessor.doOperation(CoverageProcessor.java:587)
	at org.openstreetmap.josm.plugins.ImportImagePlugin.PluginOperations.reprojectCoverage(PluginOperations.java:81)
	at org.openstreetmap.josm.plugins.ImportImagePlugin.ImageLayer.createImage(ImageLayer.java:94)
	at org.openstreetmap.josm.plugins.ImportImagePlugin.ImageLayer.<init>(ImageLayer.java:74)
	at org.openstreetmap.josm.plugins.ImportImagePlugin.LoadImageAction.actionPerformed(LoadImageAction.java:47)
	at java.desktop/javax.swing.AbstractButton.fireActionPerformed(Unknown Source)
	at java.desktop/javax.swing.AbstractButton$Handler.actionPerformed(Unknown Source)
	at java.desktop/javax.swing.DefaultButtonModel.fireActionPerformed(Unknown Source)
	at java.desktop/javax.swing.DefaultButtonModel.setPressed(Unknown Source)
	at java.desktop/javax.swing.AbstractButton.doClick(Unknown Source)
	at java.desktop/javax.swing.plaf.basic.BasicMenuItemUI.doClick(Unknown Source)
	at java.desktop/javax.swing.plaf.basic.BasicMenuItemUI$Handler.mouseReleased(Unknown Source)
	at java.desktop/java.awt.AWTEventMulticaster.mouseReleased(Unknown Source)
	at java.desktop/java.awt.Component.processMouseEvent(Unknown Source)
	at java.desktop/javax.swing.JComponent.processMouseEvent(Unknown Source)
	at java.desktop/java.awt.Component.processEvent(Unknown Source)
	at java.desktop/java.awt.Container.processEvent(Unknown Source)
	at java.desktop/java.awt.Component.dispatchEventImpl(Unknown Source)
	at java.desktop/java.awt.Container.dispatchEventImpl(Unknown Source)
	at java.desktop/java.awt.Component.dispatchEvent(Unknown Source)
	at java.desktop/java.awt.LightweightDispatcher.retargetMouseEvent(Unknown Source)
	at java.desktop/java.awt.LightweightDispatcher.processMouseEvent(Unknown Source)
	at java.desktop/java.awt.LightweightDispatcher.dispatchEvent(Unknown Source)
	at java.desktop/java.awt.Container.dispatchEventImpl(Unknown Source)
	at java.desktop/java.awt.Window.dispatchEventImpl(Unknown Source)
	at java.desktop/java.awt.Component.dispatchEvent(Unknown Source)
	at java.desktop/java.awt.EventQueue.dispatchEventImpl(Unknown Source)
	at java.desktop/java.awt.EventQueue$4.run(Unknown Source)
	at java.desktop/java.awt.EventQueue$4.run(Unknown Source)
	at java.base/java.security.AccessController.doPrivileged(Unknown Source)
	at java.base/java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.base/java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.desktop/java.awt.EventQueue$5.run(Unknown Source)
	at java.desktop/java.awt.EventQueue$5.run(Unknown Source)
	at java.base/java.security.AccessController.doPrivileged(Unknown Source)
	at java.base/java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.desktop/java.awt.EventQueue.dispatchEvent(Unknown Source)
	at java.desktop/java.awt.EventDispatchThread.pumpOneEventForFilters(Unknown Source)
	at java.desktop/java.awt.EventDispatchThread.pumpEventsForFilter(Unknown Source)
	at java.desktop/java.awt.EventDispatchThread.pumpEventsForHierarchy(Unknown Source)
	at java.desktop/java.awt.EventDispatchThread.pumpEvents(Unknown Source)
	at java.desktop/java.awt.EventDispatchThread.pumpEvents(Unknown Source)
	at java.desktop/java.awt.EventDispatchThread.run(Unknown Source)

[syncronic]

A bit additional info:
Source of the .prj file is ticket #6665 comment 11. At that time the geotools library could not handle
[​​http://crs.bkg.bund.de/crseu/crs/descrtrans/BeTA/BETA2007.gsb]

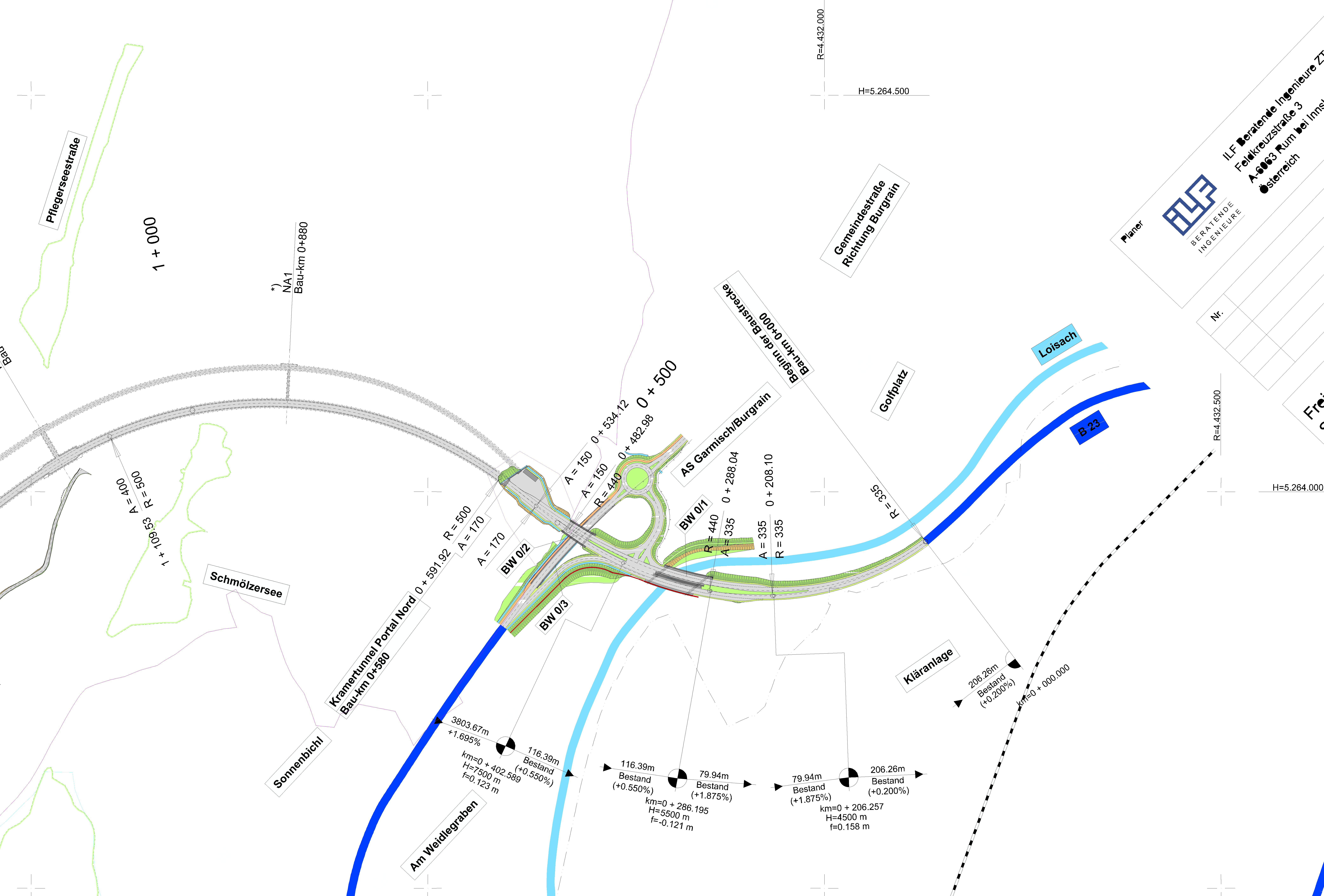

which causes a 2m offset im test.png in the ImportImagePlugin. The .prj File avoids that via the towgs84 parameters.
The offset is still there, but should not be scope of this ticket.

[taylor.smock]

This appears to be an ejml versioning problem.
We are packaging 0.41​ in the ejml plugin, while geotools is using ​0.34.

[taylor.smock]

Upstream PR: ​https://github.com/geotools/geotools/pull/3996

[taylor.smock]

Upstream has merged the PR. When they do a release with the fix, I'll update the JOSM plugin.

[taylor.smock]

Ticket #22881 has been marked as a duplicate of this ticket.
