#19715 closed defect (othersoftware)

JOSM ERROR : Unable to retrieve WMS layers list

Reported by: SiiG Owned by: SiiG
Priority: normal Milestone:
Component: Core imagery Version:
Keywords: WMS Cc:

Description

Hi,

I desperately try to use a WMS stream published with the SiiG's VMap under JOSM.
This is the feed https://carto.siig.fr/wms/public/FluxPublic? which will allow us to display the track sections and address points in order to update OSM.

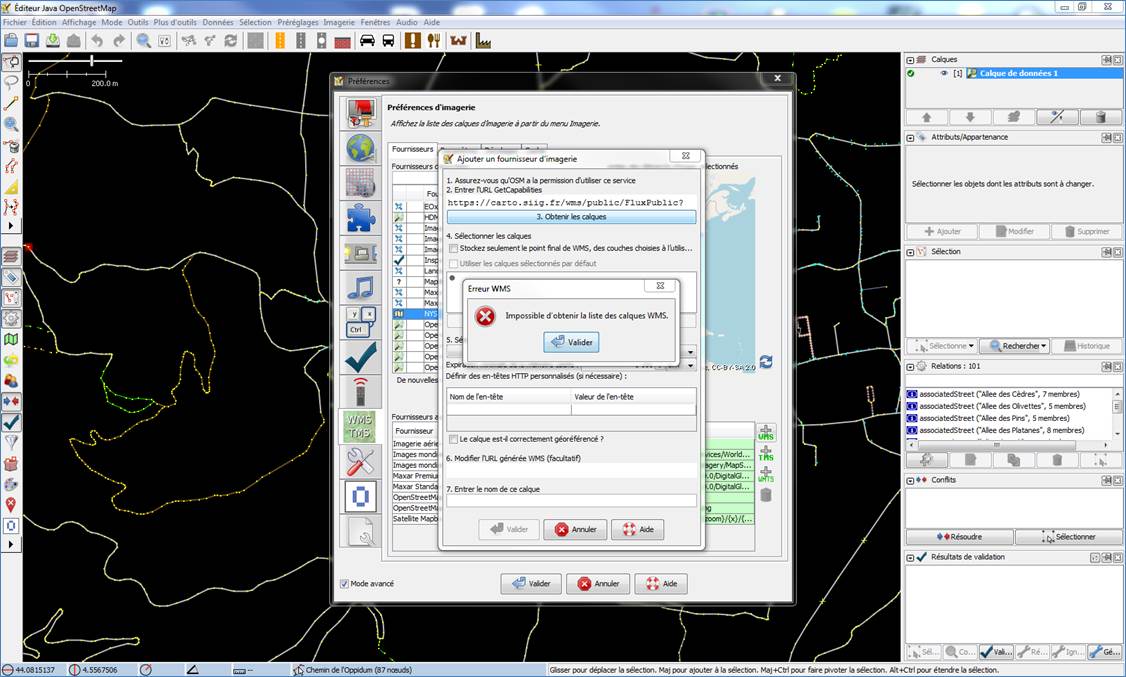

When I click the "Get Layers" button, I end up with the following error (see screenshot below):

"Unable to retrieve WMS layers list"

I saw that OSM had to have permission to use the service https://carto.siig.fr/wms/public/FluxPublic? but I don’t see what to do if that’s the error!

I would like to point out that I have tested the service under QGis and it works well.

Thanks for your help.

Attachments (2)


Download all attachments as: .zip

Change History (22)

Changed 8 months ago by SiiG

Attachment: screenshot_josm.jpg added

comment:1 Changed 8 months ago by SiiG

My JOSM version is 16812.
My JAVA version is 1.8.0_261.

comment:2 Changed 8 months ago by Klumbumbus

I received a security warning due to an invalid certificate from that site. After clicking continue it worked for me. Did you receive the warning too?

comment:3 Changed 8 months ago by SiiG

Thank you
Not at all.
I get an error message showing a "Validate" button.
When I click on this button I can't get the list of layers and I can't click on the "Validate" button in the "Add an imagery provider" window.

comment:4 Changed 8 months ago by SiiG

I forgot to specify that I'm not received a security warning due to an invalid certificate from my site.

comment:5 Changed 6 months ago by SiiG

Help me please,
Does anyone have a solution to my problem?
Is there a log file that contains the error that occurs while loading WMS layers under JSM?
Thank you in advance

Changed 6 months ago by SiiG

Attachment: qgis.jpg added

comment:6 Changed 6 months ago by SiiG

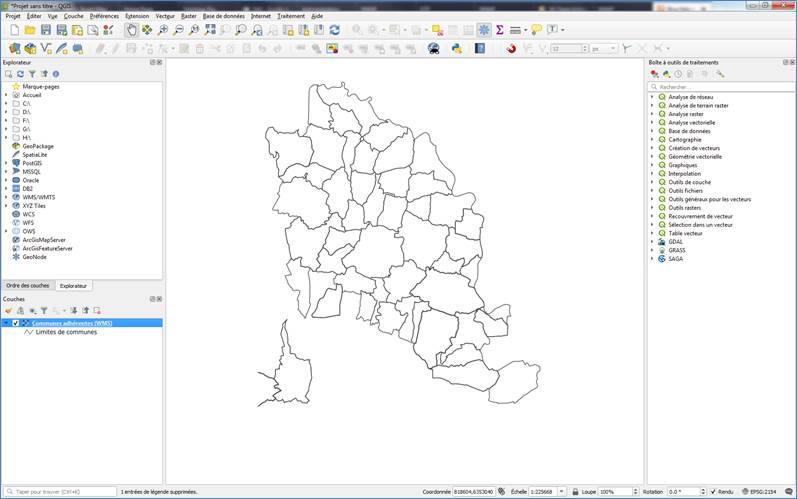

I specify that the WMS flow works correctly under QGis (see screenshot attached)

comment:7 Changed 6 months ago by GerdP

I suggest to start JOSM from a command line with the --debug option. If you can't find a hint there attach your status report and the debug messages here.

comment:8 Changed 6 months ago by skyper

Ticket #19891 has been marked as a duplicate of this ticket.

comment:9 Changed 6 months ago by skyper

Thanks for your report, however your ticket is incomplete and therefore not helpful in its current form.

Please add all needed information according to this list:

  • The required parts of the Status Report from your JOSM.
  • Describe what behaviour you expected.
  • Describe what did happen instead.
  • Describe if and how the issue is reproducible.
  • Add any relevant information like error messages or screenshots.

To ensure that all technical relevant information is contained, create new tickets by clicking in JOSMs Main Menu on Helpsource:trunk/resources/images/bug.svg Report Bug.


comment:10 Changed 6 months ago by skyper

Keywords: WMS added
Owner: changed from team to SiiG
Status: newneedinfo
Type: taskdefect

comment:11 Changed 6 months ago by skyper

Component: CoreCore imagery

comment:12 Changed 6 months ago by SiiG

I have an "josm.exe" file in "C:\Program Files (x86)\JOSM\" folder.
I also have an "josm-tested.jar" in this folder.
When i start JOSM with this command line "java -jar josm-tested.jar --debug", i get this error message :

Error: opening registry key 'Software\JavaSoft\Java Runtime Environment'
Error: could not find java.dll
Error: Could not find Java SE Runtime Environment.

comment:13 Changed 6 months ago by skyper

See JavaTest. OP seems to be windows?

comment:14 Changed 6 months ago by simon04

@SiiG, Help/Action/ShowStatusReport requested in comment:9 immediately reveals the problem: Java does not accept the HTTPS certificate:

URL:https://josm.openstreetmap.de/svn/trunk
Repository:UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b
Last:Changed Date: 2020-09-06 16:54:59 +0200 (Sun, 06 Sep 2020)
Build-Date:2020-09-07 01:30:48
Revision:17013
Relative:URL: ^/trunk

Identification: JOSM/1.5 (17013 en_GB) Linux Arch Linux
Memory Usage: 1556 MB / 6996 MB (647 MB allocated, but free)
Java version: 1.8.0_265-b01, Oracle Corporation, OpenJDK 64-Bit Server VM
Look and Feel: javax.swing.plaf.metal.MetalLookAndFeel
Screen: :0.0 3840x2160 (scaling 1.0x1.0)
Maximum Screen Size: 3840x2160
Best cursor sizes: 16x16 -> 16x16, 32x32 -> 32x32
Desktop environment: i3

Last errors/warnings:
- 00015.963 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00015.964 W: Already here sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.065 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.172 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.273 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.379 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.480 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.587 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.688 W: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00016.689 E: javax.net.ssl.SSLHandshakeException: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Cause: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

comment:15 Changed 6 months ago by simon04

Summary: JOSM ERROR : Unable to retrieve WMS layers listUnable to retrieve WMS layers list from carto.siig.fr

comment:16 Changed 6 months ago by SiiG

Summary: Unable to retrieve WMS layers list from carto.siig.frJOSM ERROR : Unable to retrieve WMS layers list

Thanks but what do you mean ?
I do not understand "OP"?!?

comment:17 Changed 6 months ago by stoecker

The certificate chain is incomplete, so that JOSM wont accept the cert.

There are two possibilities:

comment:18 Changed 6 months ago by stoecker

Resolution: othersoftware
Status: needinfoclosed

comment:19 Changed 6 months ago by SiiG

OK
Thank you for your answer
We will try to complete our certificate

comment:20 Changed 6 months ago by SiiG

Hi,
We installed the intermediate certificate on our server and everything is working fine now.
Thank you very much for the help you have given us.
