#18480 closed defect (wontfix)

Multi coloured tower are not rendered correctly in SeaMapEditor plugin

Reported by: pyrog Owned by: malcolmh
Priority: normal Milestone:
Component: Plugin seamapeditor Version:
Keywords: template_report Cc:

Description

What steps will reproduce the problem?

Create a lateral beacon with 2 colours :
seamark:beacon_lateral:category=port
seamark:beacon_lateral:colour=red;white
seamark:beacon_lateral:colour_pattern=horizontal
seamark:beacon_lateral:shape=tower
seamark:beacon_lateral:system=iala-a
seamark:type=beacon_lateral

What is the expected result?

Display the tower like the renderer,
or at least, don't fill it and display RW below

What happens instead?

The tower is coloured in yellow.

Please provide any additional information below. Attach a screenshot if possible.

URL:https://josm.openstreetmap.de/svn/trunk
Repository:UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b
Last:Changed Date: 2019-12-21 15:53:55 +0100 (Sat, 21 Dec 2019)
Build-Date:2019-12-22 02:30:55
Revision:15607
Relative:URL: ^/trunk

Identification: JOSM/1.5 (15607 fr) Mac OS X 10.14.6
OS Build number: Mac OS X 10.14.6 (18G95)
Memory Usage: 1925 MB / 1925 MB (167 MB allocated, but free)
Java version: 1.8.0_231-b11, Oracle Corporation, Java HotSpot(TM) 64-Bit Server VM
Screen: Display 69732928 1280x800
Maximum Screen Size: 1280x800
VM arguments: [-Djava.security.policy=file:<java.home>/lib/security/javaws.policy, -DtrustProxy=true, -Djnlpx.home=<java.home>/bin, -Djava.security.manager, -Djnlpx.origFilenameArg=${HOME}/Library/Application Support/Oracle/Java/Deployment/cache/6.0/31/583aa85f-4a297e61, -Djnlpx.remove=false, -Dsun.awt.warmup=true, -Djava.util.Arrays.useLegacyMergeSort=true, -Djnlpx.heapsize=NULL,2048m, -Dmacosx.jnlpx.dock.name=JOSM (development version), -Dmacosx.jnlpx.dock.icon=${HOME}/Library/Application Support/Oracle/Java/Deployment/cache/6.0/25/4c122699-72a21903.icns, -Djnlp.application.href=https://josm.openstreetmap.de/download/josm-latest.jnlp , -Djnlpx.jvm="<java.home>/bin/java"]
Dataset consistency test: No problems found

Plugins:
+ CADTools (1008)
+ PicLayer (35248)
+ SeaMapEditor (35248)
+ apache-commons (35092)
+ apache-http (35092)
+ cadastre-fr (35248)
+ ejml (35122)
+ geotools (35169)
+ jaxb (35092)
+ jna (35092)
+ jts (35122)
+ opendata (35248)
+ reverter (35248)
+ tag2link (35248)
+ utilsplugin2 (35248)
+ wikipedia (1.1.3)

Tagging presets:
+ https://josm.openstreetmap.de/josmfile?page=Presets/Towers&zip=1
+ https://raw.githubusercontent.com/OpenNauticalChart/josm/master/INT-1-preset.xml
+ https://josm.openstreetmap.de/josmfile?page=Presets/Telecom&zip=1

Validator rules:
+ https://github.com/Jungle-Bus/transport_mapcss/raw/gh-pages/transport.validator.zip
+ ${HOME}/Downloads/Rules_Pictures.validator.mapcss

Last errors/warnings:
- W: Already here java.net.SocketTimeoutException: Read timed out
- W: java.net.SocketTimeoutException: Read timed out
- W: java.net.SocketTimeoutException: Read timed out
- W: java.net.SocketTimeoutException: Read timed out
- W: java.io.IOException: Tags to paste are not valid.
- E: Handled by bug report queue: java.lang.NullPointerException
- E: Handled by bug report queue: java.lang.NullPointerException
- E: Handled by bug report queue: java.lang.NullPointerException
- E: Handled by bug report queue: java.lang.NullPointerException
- W: Avertissement - <html>JOSM ne parvient pas à trouver d’information sur les greffons suivants :<ul><li>SeaMapEditor</li><li>apache-commons</li><li>geotools</li><li>opendata</li><li>jts</li><li>tag2link</li><li>ejml</li><li>cadastre-fr</li><li>reverter</li><li>jaxb</li><li>utilsplugin2</li><li>CADTools</li><li>wikipedia</li><li>jna</li><li>PicLayer</li><li>apache-http</li></ul>Les greffons ne seront pas chargés.</html>

Attachments (1)

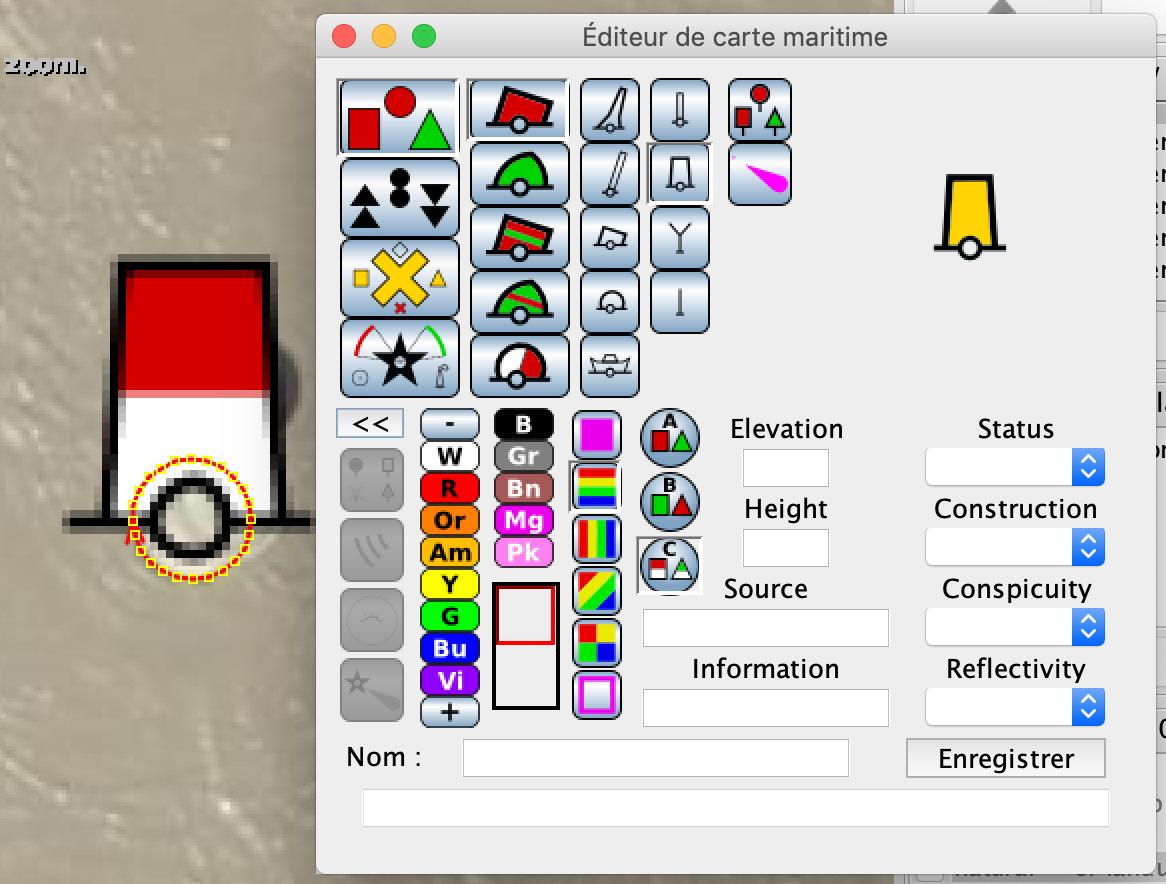

multi coloured tower .png​ (355.6 KB ) - added by pyrog 6 years ago.

Download all attachments as: .zip

Change History (3)

by pyrog, 6 years ago

Attachment: multi coloured tower .png​ added

comment:2 by malcolmh, 6 years ago

Resolution: → wontfix
Status: new → closed

I ceased development of this plugin several years ago. Since then, I only fix serious malfunctions.
