Support user logins ending by " !"

[anonymous]

What steps will reproduce the problem?

1. I have a new laptop, haven't installed JOSM before in this laptop. I downloaded the latest JOSM installer version 14382. I have Java 8 Update 191 installed in my laptop before I install.

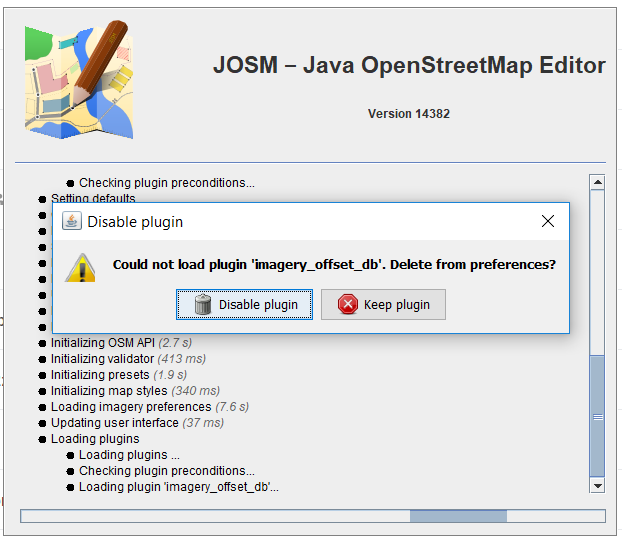

2. when I opened JOSM for the first time, it showed notification about plugin imagery offset and turnrestrictions is not up-to-date and need to be update. I have chose both Keep plugin and Disable plugin in some attempts but this notification kept showing up. (pic 1 and pic 2)
3. I set my preference such as put my OSM username and password and download building and utilsplugin. then I restart the JOSM
4. After JOSM is opened again, I couldn't open my preference window, even from preference button. (pic 3).

What is the expected result?

• Can open preference window
• can manage plugins properly

What happens instead?

• Can not open preference window

Please provide any additional information below. Attach a screenshot if possible.

URL:https://josm.openstreetmap.de/svn/trunk
Repository:UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b
Last:Changed Date: 2018-10-28 22:27:31 +0100 (Sun, 28 Oct 2018)
Build-Date:2018-10-28 21:33:32
Revision:14382
Relative:URL: ^/trunk

Identification: JOSM/1.5 (14382 en) Windows 10 64-Bit
OS Build number: Windows 10 Home 1803 (17134)
Memory Usage: 247 MB / 989 MB (71 MB allocated, but free)
Java version: 1.8.0_191-b12, Oracle Corporation, Java HotSpot(TM) Client VM
Screen: \Display0 1920x1080
Maximum Screen Size: 1920x1080

Plugins:
+ buildings_tools (34572)
+ utilsplugin2 (34506)

Map paint styles:
+ %UserProfile%\Dropbox\HOT\Tool Setting Files\FB_style.mapcss
+ %UserProfile%\Dropbox\HOT\Tool Setting Files\FB_rainbow_color_style.mapcss

Validator rules:
+ %UserProfile%\Dropbox\HOT\Tool Setting Files\FB_rules_HOT.validator.mapcss

Last errors/warnings:
- E: Handled by bug report queue: org.openstreetmap.josm.tools.JosmRuntimeException: Fatal: failed to locate image 'utils.???'. This is a serious configuration problem. JOSM will stop working.
- W: java.nio.file.NoSuchFileException: C:\Users\HOT%20!\AppData\Roaming\JOSM\plugins\utilsplugin2.jar
- W: Unable to read image: java.io.FileNotFoundException: C:\Users\HOT  (The system cannot find the file specified)
- E: Handled by bug report queue: org.openstreetmap.josm.tools.JosmRuntimeException: Fatal: failed to locate image 'utils.???'. This is a serious configuration problem. JOSM will stop working.
- W: java.nio.file.NoSuchFileException: C:\Users\HOT%20!\AppData\Roaming\JOSM\plugins\utilsplugin2.jar
- W: Unable to read image: java.io.FileNotFoundException: C:\Users\HOT  (The system cannot find the file specified)
- E: Handled by bug report queue: org.openstreetmap.josm.tools.JosmRuntimeException: Fatal: failed to locate image 'utils.???'. This is a serious configuration problem. JOSM will stop working.
- W: java.nio.file.NoSuchFileException: C:\Users\HOT%20!\AppData\Roaming\JOSM\plugins\utilsplugin2.jar
- W: Unable to read image: java.io.FileNotFoundException: C:\Users\HOT  (The system cannot find the file specified)
- E: Handled by bug report queue: org.openstreetmap.josm.tools.JosmRuntimeException: Fatal: failed to locate image 'utils.???'. This is a serious configuration problem. JOSM will stop working.


=== REPORTED CRASH DATA ===
BugReportExceptionHandler#handleException:
No data collected.

Warning issued by: BugReportExceptionHandler#handleException

=== STACK TRACE ===
Thread: AWT-EventQueue-0 (15) of main
org.openstreetmap.josm.tools.JosmRuntimeException: Fatal: failed to locate image 'utils.???'. This is a serious configuration problem. JOSM will stop working.
	at org.openstreetmap.josm.tools.ImageProvider.getResource(ImageProvider.java:713)
	at org.openstreetmap.josm.tools.ImageProvider.get(ImageProvider.java:673)
	at org.openstreetmap.josm.tools.ImageProvider.get(ImageProvider.java:780)
	at org.openstreetmap.josm.gui.preferences.PreferenceTabbedPane.addGUITabs(PreferenceTabbedPane.java:494)
	at org.openstreetmap.josm.gui.preferences.PreferenceTabbedPane.buildGui(PreferenceTabbedPane.java:457)
	at org.openstreetmap.josm.gui.preferences.PreferenceDialog.build(PreferenceDialog.java:83)
	at org.openstreetmap.josm.gui.preferences.PreferenceDialog.<init>(PreferenceDialog.java:53)
	at org.openstreetmap.josm.actions.PreferencesAction.run(PreferencesAction.java:106)
	at org.openstreetmap.josm.actions.PreferencesAction.actionPerformed(PreferencesAction.java:101)
	at javax.swing.AbstractButton.fireActionPerformed(Unknown Source)
	at javax.swing.AbstractButton$Handler.actionPerformed(Unknown Source)
	at javax.swing.DefaultButtonModel.fireActionPerformed(Unknown Source)
	at javax.swing.DefaultButtonModel.setPressed(Unknown Source)
	at javax.swing.plaf.basic.BasicButtonListener.mouseReleased(Unknown Source)
	at java.awt.AWTEventMulticaster.mouseReleased(Unknown Source)
	at java.awt.Component.processMouseEvent(Unknown Source)
	at javax.swing.JComponent.processMouseEvent(Unknown Source)
	at java.awt.Component.processEvent(Unknown Source)
	at java.awt.Container.processEvent(Unknown Source)
	at java.awt.Component.dispatchEventImpl(Unknown Source)
	at java.awt.Container.dispatchEventImpl(Unknown Source)
	at java.awt.Component.dispatchEvent(Unknown Source)
	at java.awt.LightweightDispatcher.retargetMouseEvent(Unknown Source)
	at java.awt.LightweightDispatcher.processMouseEvent(Unknown Source)
	at java.awt.LightweightDispatcher.dispatchEvent(Unknown Source)
	at java.awt.Container.dispatchEventImpl(Unknown Source)
	at java.awt.Window.dispatchEventImpl(Unknown Source)
	at java.awt.Component.dispatchEvent(Unknown Source)
	at java.awt.EventQueue.dispatchEventImpl(Unknown Source)
	at java.awt.EventQueue.access$500(Unknown Source)
	at java.awt.EventQueue$3.run(Unknown Source)
	at java.awt.EventQueue$3.run(Unknown Source)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.awt.EventQueue$4.run(Unknown Source)
	at java.awt.EventQueue$4.run(Unknown Source)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.awt.EventQueue.dispatchEvent(Unknown Source)
	at java.awt.EventDispatchThread.pumpOneEventForFilters(Unknown Source)
	at java.awt.EventDispatchThread.pumpEventsForFilter(Unknown Source)
	at java.awt.EventDispatchThread.pumpEventsForHierarchy(Unknown Source)
	at java.awt.EventDispatchThread.pumpEvents(Unknown Source)
	at java.awt.EventDispatchThread.pumpEvents(Unknown Source)
	at java.awt.EventDispatchThread.run(Unknown Source)

[anonymous]

One more thing.

Building tools plugin was successfully installed, but this plugin is missing, I couldn't find it in toolbar.

[floscher]

You have a space and a ! in your username. That rings a bell for me, IIRC Java can't handle paths correctly with some special characters.

In the following lines from your log, the path is cut at the space character in the second message:

- W: java.nio.file.NoSuchFileException: C:\Users\HOT%20!\AppData\Roaming\JOSM\plugins\utilsplugin2.jar
- W: Unable to read image: java.io.FileNotFoundException: C:\Users\HOT (The system cannot find the file specified)

That indicates to me that the space character is the culprit.

Edit: Here is an older ticket where the issue was a directory ending in !: https://josm.openstreetmap.de/ticket/15662#comment:8

[Don-vip]

Without surprise, testing a Windows user account with a space in it is currently unsupported. I can't even start JOSM 14385 with Java 11:

$ pwd
/c/Users/HOT !/Downloads

$ java -jar josm-latest.jar
Exception in thread "main" java.nio.file.InvalidPathException: Trailing char < > at index 12: C:\Users\HOT
        at java.base/sun.nio.fs.WindowsPathParser.normalize(WindowsPathParser.java:191)
        at java.base/sun.nio.fs.WindowsPathParser.parse(WindowsPathParser.java:153)
        at java.base/sun.nio.fs.WindowsPathParser.parse(WindowsPathParser.java:77)
        at java.base/sun.nio.fs.WindowsPath.parse(WindowsPath.java:92)
        at java.base/sun.nio.fs.WindowsFileSystem.getPath(WindowsFileSystem.java:229)
        at java.base/java.io.File.toPath(File.java:2290)
        at java.base/java.util.zip.ZipFile$Source.get(ZipFile.java:1222)
        at java.base/java.util.zip.ZipFile$CleanableResource.<init>(ZipFile.java:824)
        at java.base/java.util.zip.ZipFile$CleanableResource$FinalizableResource.<init>(ZipFile.java:850)
        at java.base/java.util.zip.ZipFile$CleanableResource.get(ZipFile.java:839)
        at java.base/java.util.zip.ZipFile.<init>(ZipFile.java:246)
        at java.base/java.util.zip.ZipFile.<init>(ZipFile.java:176)
        at java.base/java.util.jar.JarFile.<init>(JarFile.java:346)
        at java.base/sun.net.www.protocol.jar.URLJarFile.<init>(URLJarFile.java:103)
        at java.base/sun.net.www.protocol.jar.URLJarFile.getJarFile(URLJarFile.java:72)
        at java.base/sun.net.www.protocol.jar.JarFileFactory.get(JarFileFactory.java:94)
        at java.base/sun.net.www.protocol.jar.JarURLConnection.connect(JarURLConnection.java:125)
        at java.base/sun.net.www.protocol.jar.JarURLConnection.getInputStream(JarURLConnection.java:155)
        at java.base/java.net.URL.openStream(URL.java:1117)
        at org.openstreetmap.josm.tools.Utils.openStream(Utils.java:1847)
        at org.openstreetmap.josm.tools.I18n.load(I18n.java:415)
        at org.openstreetmap.josm.tools.I18n.init(I18n.java:372)
        at org.openstreetmap.josm.gui.MainApplication.main(MainApplication.java:697)

$ java -version
java version "11" 2018-09-25
Java(TM) SE Runtime Environment 18.9 (build 11+28)
Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11+28, mixed mode)

[floscher]

Have you also tested with usernames like "HOT HOT"? Java rejects directories with trailing spaces on purpose: ​https://bugs.openjdk.java.net/browse/JDK-8190546

In this case the space is maybe incorrectly recognized as being a trailing space, because it's only followed by a special character. Then the exception message "Trailing char" makes more sense. Just a thought.

[Don-vip]

In 14404/josm:

see #16937 - Support user logins with space character on Java 8

[Don-vip]

In 14406/josm:

see #16937 - Support user logins with space character on Java 11 (JOSM startup)

[Don-vip]

With r14406 JOSM starts with Java 11 but is unusable. When I try to open the download dialog this exception is logged (by who?) and the UI freezes:

Uncaught error fetching image:
java.nio.file.InvalidPathException: Trailing char < > at index 12: C:\Users\HOT
        at java.base/sun.nio.fs.WindowsPathParser.normalize(WindowsPathParser.java:191)
        at java.base/sun.nio.fs.WindowsPathParser.parse(WindowsPathParser.java:153)
        at java.base/sun.nio.fs.WindowsPathParser.parse(WindowsPathParser.java:77)
        at java.base/sun.nio.fs.WindowsPath.parse(WindowsPath.java:92)
        at java.base/sun.nio.fs.WindowsFileSystem.getPath(WindowsFileSystem.java:229)
        at java.base/java.io.File.toPath(File.java:2290)
        at java.base/java.util.zip.ZipFile$Source.get(ZipFile.java:1222)
        at java.base/java.util.zip.ZipFile$CleanableResource.<init>(ZipFile.java:824)
        at java.base/java.util.zip.ZipFile$CleanableResource$FinalizableResource.<init>(ZipFile.java:850)
        at java.base/java.util.zip.ZipFile$CleanableResource.get(ZipFile.java:839)
        at java.base/java.util.zip.ZipFile.<init>(ZipFile.java:246)
        at java.base/java.util.zip.ZipFile.<init>(ZipFile.java:176)
        at java.base/java.util.jar.JarFile.<init>(JarFile.java:346)
        at java.base/sun.net.www.protocol.jar.URLJarFile.<init>(URLJarFile.java:103)
        at java.base/sun.net.www.protocol.jar.URLJarFile.getJarFile(URLJarFile.java:72)
        at java.base/sun.net.www.protocol.jar.JarFileFactory.get(JarFileFactory.java:94)
        at java.base/sun.net.www.protocol.jar.JarURLConnection.connect(JarURLConnection.java:125)
        at java.base/sun.net.www.protocol.jar.JarURLConnection.getInputStream(JarURLConnection.java:155)
        at java.desktop/sun.awt.image.URLImageSource.getDecoder(URLImageSource.java:112)
        at java.desktop/sun.awt.image.InputStreamImageSource.doFetch(InputStreamImageSource.java:263)
        at java.desktop/sun.awt.image.ImageFetcher.fetchloop(ImageFetcher.java:212)
        at java.desktop/sun.awt.image.ImageFetcher.run(ImageFetcher.java:176)

The EDT is blocked:

"AWT-EventQueue-0" #19 prio=6 os_prio=0 cpu=5437.50ms elapsed=355.69s tid=0x000001bcd3d7e800 nid=0x52e4 in Object.wait()  [0x00000024743fa000]
   java.lang.Thread.State: WAITING (on object monitor)
        at java.lang.Object.wait(java.base@11.0.1/Native Method)
        - waiting on <no object reference available>
        at java.awt.MediaTracker.waitForID(java.desktop@11.0.1/MediaTracker.java:679)
        - waiting to re-lock in wait() <0x0000000701a87a48> (a java.awt.MediaTracker)
        at javax.swing.ImageIcon.loadImage(java.desktop@11.0.1/ImageIcon.java:314)
        - waiting to re-lock in wait() <0x0000000701a87a48> (a java.awt.MediaTracker)
        at javax.swing.ImageIcon.<init>(java.desktop@11.0.1/ImageIcon.java:204)
        at javax.swing.ImageIcon.<init>(java.desktop@11.0.1/ImageIcon.java:217)
        at org.openstreetmap.gui.jmapviewer.JMapViewer.initializeZoomSlider(JMapViewer.java:177)
        at org.openstreetmap.gui.jmapviewer.JMapViewer.<init>(JMapViewer.java:150)
        at org.openstreetmap.gui.jmapviewer.JMapViewer.<init>(JMapViewer.java:119)
        at org.openstreetmap.josm.gui.bbox.SlippyMapBBoxChooser.<init>(SlippyMapBBoxChooser.java:176)
        at org.openstreetmap.josm.gui.download.SlippyMapChooser.<init>(SlippyMapChooser.java:35)
        at org.openstreetmap.josm.gui.download.DownloadDialog.buildMainPanel(DownloadDialog.java:125)
        at org.openstreetmap.josm.gui.download.DownloadDialog.<init>(DownloadDialog.java:227)
        at org.openstreetmap.josm.gui.download.DownloadDialog.<init>(DownloadDialog.java:215)
        at org.openstreetmap.josm.gui.download.DownloadDialog.getInstance(DownloadDialog.java:81)
        - locked <0x00000007059aba40> (a java.lang.Class for org.openstreetmap.josm.gui.download.DownloadDialog)
        at org.openstreetmap.josm.actions.DownloadAction.actionPerformed(DownloadAction.java:35)
        at javax.swing.AbstractButton.fireActionPerformed(java.desktop@11.0.1/AbstractButton.java:1967)
        at javax.swing.AbstractButton$Handler.actionPerformed(java.desktop@11.0.1/AbstractButton.java:2308)
        at javax.swing.DefaultButtonModel.fireActionPerformed(java.desktop@11.0.1/DefaultButtonModel.java:405)
        at javax.swing.DefaultButtonModel.setPressed(java.desktop@11.0.1/DefaultButtonModel.java:262)
        at javax.swing.plaf.basic.BasicButtonListener.mouseReleased(java.desktop@11.0.1/BasicButtonListener.java:279)
        at java.awt.AWTEventMulticaster.mouseReleased(java.desktop@11.0.1/AWTEventMulticaster.java:297)
        at java.awt.Component.processMouseEvent(java.desktop@11.0.1/Component.java:6632)
        at javax.swing.JComponent.processMouseEvent(java.desktop@11.0.1/JComponent.java:3342)
        at java.awt.Component.processEvent(java.desktop@11.0.1/Component.java:6397)
        at java.awt.Container.processEvent(java.desktop@11.0.1/Container.java:2263)
        at java.awt.Component.dispatchEventImpl(java.desktop@11.0.1/Component.java:5008)
        at java.awt.Container.dispatchEventImpl(java.desktop@11.0.1/Container.java:2321)
        at java.awt.Component.dispatchEvent(java.desktop@11.0.1/Component.java:4840)
        at java.awt.LightweightDispatcher.retargetMouseEvent(java.desktop@11.0.1/Container.java:4918)
        at java.awt.LightweightDispatcher.processMouseEvent(java.desktop@11.0.1/Container.java:4547)
        at java.awt.LightweightDispatcher.dispatchEvent(java.desktop@11.0.1/Container.java:4488)
        at java.awt.Container.dispatchEventImpl(java.desktop@11.0.1/Container.java:2307)
        at java.awt.Window.dispatchEventImpl(java.desktop@11.0.1/Window.java:2772)
        at java.awt.Component.dispatchEvent(java.desktop@11.0.1/Component.java:4840)
        at java.awt.EventQueue.dispatchEventImpl(java.desktop@11.0.1/EventQueue.java:772)
        at java.awt.EventQueue$4.run(java.desktop@11.0.1/EventQueue.java:721)
        at java.awt.EventQueue$4.run(java.desktop@11.0.1/EventQueue.java:715)
        at java.security.AccessController.doPrivileged(java.base@11.0.1/Native Method)
        at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(java.base@11.0.1/ProtectionDomain.java:85)
        at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(java.base@11.0.1/ProtectionDomain.java:95)
        at java.awt.EventQueue$5.run(java.desktop@11.0.1/EventQueue.java:745)
        at java.awt.EventQueue$5.run(java.desktop@11.0.1/EventQueue.java:743)
        at java.security.AccessController.doPrivileged(java.base@11.0.1/Native Method)
        at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(java.base@11.0.1/ProtectionDomain.java:85)
        at java.awt.EventQueue.dispatchEvent(java.desktop@11.0.1/EventQueue.java:742)
        at java.awt.EventDispatchThread.pumpOneEventForFilters(java.desktop@11.0.1/EventDispatchThread.java:203)
        at java.awt.EventDispatchThread.pumpEventsForFilter(java.desktop@11.0.1/EventDispatchThread.java:124)
        at java.awt.EventDispatchThread.pumpEventsForHierarchy(java.desktop@11.0.1/EventDispatchThread.java:113)
        at java.awt.EventDispatchThread.pumpEvents(java.desktop@11.0.1/EventDispatchThread.java:109)
        at java.awt.EventDispatchThread.pumpEvents(java.desktop@11.0.1/EventDispatchThread.java:101)
        at java.awt.EventDispatchThread.run(java.desktop@11.0.1/EventDispatchThread.java:90)

   Locked ownable synchronizers:
        - None

Any idea how to prevent that?

[Don-vip]

Replying to floscher:

Have you also tested with usernames like "HOT HOT"? Java rejects directories with trailing spaces on purpose: ​https://bugs.openjdk.java.net/browse/JDK-8190546

In this case the space is maybe incorrectly recognized as being a trailing space, because it's only followed by a special character. Then the exception message "Trailing char" makes more sense. Just a thought.

Not tried but you're right, the issue must only happen with logins ending exactly by " !".

[anonymous]

Hi All, thanks for your help.

Yes, you're right, the problem is because the directory ending with "!".
Then I added new user on my PC with normal character and open JOSM through this user and it works now.

Thanks again! :)

[Don-vip]

In 14480/josm:

fix #16937 - Support user logins ending by " !"

[Don-vip]

Ticket #17031 has been marked as a duplicate of this ticket.
