#16476 closed enhancement (duplicate)

In the relation list, show easier-to-distinguish relation names

Reported by: anonymous Owned by: team
Priority: normal Milestone:
Component: Core Version:
Keywords: japan boundary relation Cc:

Description (last modified by Don-vip)

I'm currently mapping Fujimino (Saitama, Japan). In there, there are (like in most Japanese cities) a lot of neighborhoods called “1-banchi”, that are distinguished by the “X-chome”-type relation they have for parent, which are themselves distinguished by the (named) quarter relation they have for parent (and the parent of the quarter is the city).

As a consequence, in the relation list, I have currently about 10 relations named “1-banchi”, which makes for a pretty hard-to-use list.

Would it be possible to show the relation name the displayed relation is memberOf? (and preferentially recursively up to the root, here Japan I guess, and potentially limiting to subarea-type membership-ness)

Alternatively, would it be possible to show a “full_name” tag, when one exists, in which I could put the whole “Fujimino Kiyomi 1-chome 1-banchi” address?


Anyway, thank you for the work you do on JOSM!

Attachments (2)

fujimino.osm (4.6 MB ) - added by anonymous 6 years ago.

Change History (11)

comment:1 by Klumbumbus, 6 years ago

That seems to me a bit too specific and a change would maybe worsen the situation in other contexts. Could you please add a sample data set (.osm file) and a screenshot showing the problem?

comment:2 by Don-vip, 6 years ago

Owner: changed from team to anonymous
Status: newneedinfo

by anonymous, 6 years ago

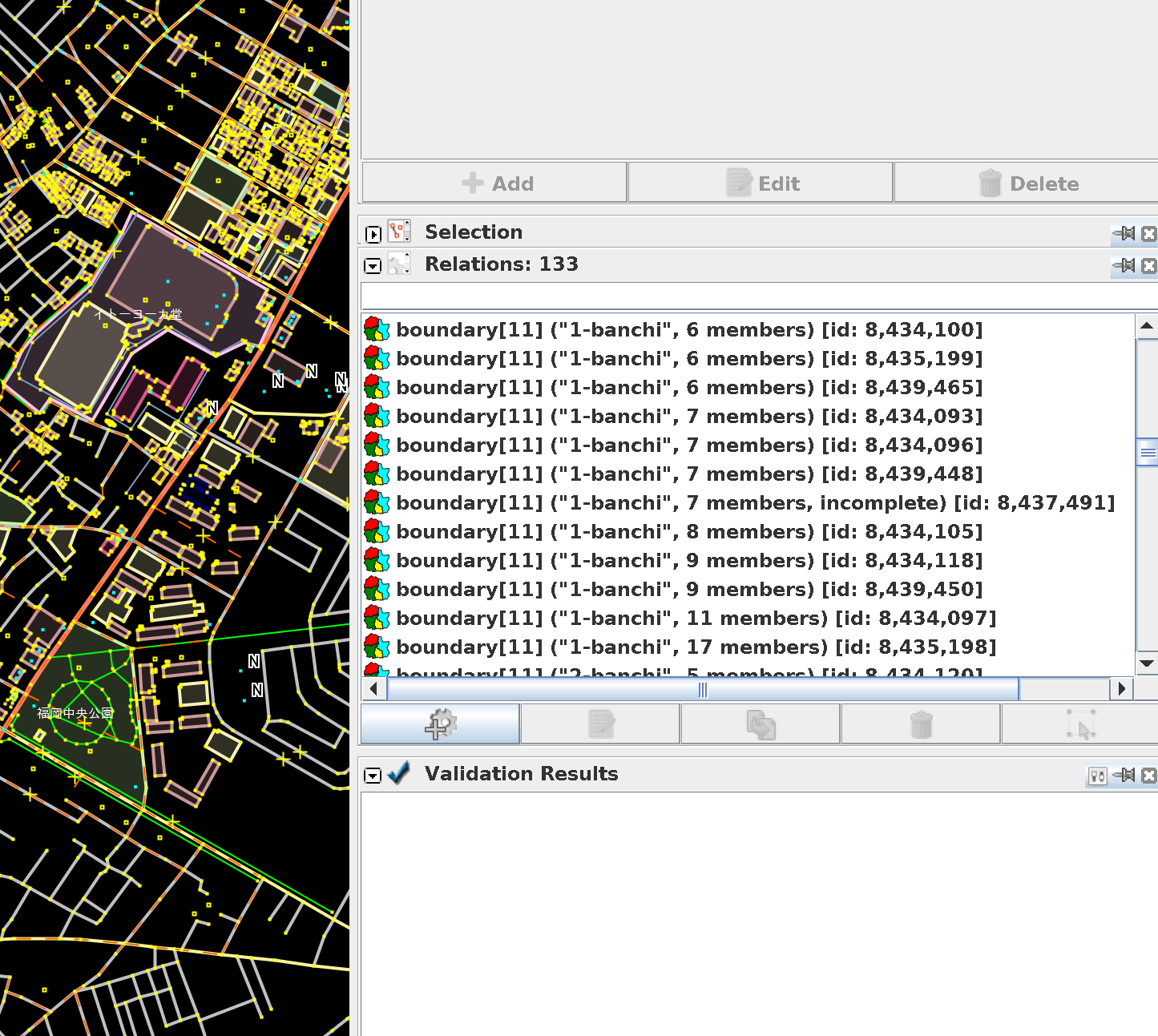

Attachment: screenshot.png added

by anonymous, 6 years ago

Attachment: fujimino.osm added

comment:3 by anonymous, 6 years ago

I guess it's a bit specific indeed, but as Japanese addresses will get mapped it will likely become the norm here. (Currently there are almost no address mapped as far as I can tell.)

Here are the two requested files. The main difficulty is when wanting to look for relation eg. Fujimino Kiyomi 1-chome 1-banchi, then I have to either go to the Fujimino relation and get down three times, every time opening a new window, or test all 1-banchi relations until I figure out thanks to highlighting which one is the right one.

Unfortunately, that's not very helpful.

(For the context, one Banchi is approximately a block, and addresses are attributed as house numbers inside the block in Japan, hence the need for it in order to map addresses.)

Anyway, thank you for reading me!
Ekleog

comment:4 by Klumbumbus, 6 years ago

Owner: changed from anonymous to team
Status: needinfonew

comment:5 by Klumbumbus, 6 years ago

Not sure if we could do something with name templates

comment:6 by Don-vip, 6 years ago

Description: modified (diff)

comment:7 by Don-vip, 6 years ago

Keywords: japan boundary relation added

We could also change the relations dialog to display a tree, where child relations appear under the parent relation node. I think there's already a ticket about that.

comment:8 by Don-vip, 6 years ago

Yep, #4399

comment:9 by anonymous, 6 years ago

Resolution: duplicate
Status: newclosed

Closed as duplicate of #4399.
Klumbumbus: Oh wow, that's great! Thanks, I was able to fix my issue with this name template :)

boundary[{admin_level}]: !{parent() type=boundary '!{parent() type=boundary '{name}'} {name}'}-{name}

(even though for some weird reason this appears to output one additional space after the second {name} element, that's not a big deal, and I'll let you open a bug if you think that deserves fixing)

Closing as dup of #4399, as that's the only thing that may still be missing to help mapping.

Thank you for your help!
Ekleog
