#15158 closed enhancement (fixed)

Feature request Tag2Link: ref:bag

Reported by: de_vries Owned by: Klumbumbus
Priority: normal Milestone: 20.02
Component: Core tag2link Version:
Keywords: netherlands Cc: simon04, nyurik

Description (last modified by Don-vip)

Disclaimer: If this is not the right place for feature requests for plug-ins, please point me to the right place.

In the Netherlands all buildings and addresses are imported from a official database (BAG). All buildings have their BAG-ID in the tag "ref:bag". I would like to have Tag2Link to provide a link, based on the "ref:bag" tag, to that object in the BagViewer. This is a website were you can view the official BAG database: https://bagviewer.kadaster.nl/

To achieve this I added the following code to the "tag2link_sources.xml" file:

    <!-- BAG - Buildings in The Neterlands -->

    <src name="BAG">
       <rule>
            <condition k="ref:bag" />
            <link name="Open in BAG Viewer" href="https://bagviewer.kadaster.nl/lvbag/bag-viewer/index.html#?searchQuery=0%v%" />
        </rule>
    </src>

This code adds a "0" in font of the BAG-ID. Here is why:

  • All BAG-ID's consist of 16 numbers
  • Most BAG-ID's start with a 0
  • Those leading zero's are striped from the BAG-ID when imported to OSM.
  • The BagViewer doesn't work if you leave out the leading zero.

So my code works in most cases, but when there was no leading zero in the original BAG-ID, it doesn't work.

I have two questions:

  • How to fix this code to ad just enough leading zero's to make the BAG-ID exactly 16 numbers long?
  • Can this be added to the plugin?

Additional details:
ref:bag is used 10.000.000 times: https://taginfo.openstreetmap.org/keys/ref%3Abag
Example of a building without a leading zero in the BAG-ID:

Example of a building with a leading zero in the BAG-ID:

Attachments (1)


Download all attachments as: .zip

Change History (20)

comment:1 Changed 3 years ago by stoecker

Component: CorePlugin tag2link
Owner: changed from team to Don-vip
Type: defectenhancement

comment:2 Changed 3 years ago by Don-vip

Description: modified (diff)
Keywords: netherlands added
Status: newassigned

It is the right place :) I will look into it.

comment:3 Changed 15 months ago by Don-vip

Summary: Feature request Tag2LinkFeature request Tag2Link: ref:bag

comment:4 Changed 15 months ago by Don-vip

Resolution: fixed
Status: assignedclosed

Fixed in [o34854:34856].

comment:5 Changed 15 months ago by stoecker

Hmm, did you looks at the mentioned formating issue?

comment:6 Changed 15 months ago by Don-vip

Resolution: fixed
Status: closedreopened

Seems not

comment:7 Changed 9 months ago by Klumbumbus

Owner: changed from Don-vip to Klumbumbus
Status: reopenednew

comment:8 Changed 9 months ago by Klumbumbus

@de_vries: valid ref:bag values in the osm database have either exact 15 or 16 digits, not more or less right?

comment:9 Changed 9 months ago by Klumbumbus

I checked the database with overpass turbo (ways only), e.g.

[out:csv(::count)][timeout:295];
(
  way["ref:bag"~"^[0-9]{14}$"];
);
out count;

which gives the following results. (15 gives no result probably due to the large number.)

18 0
17 0
16 1.641.392
15 ? (should be around 7.777.117)
14 757.516
13 28.597
12 0
11 0
10 0
9 0
8 0
7 0
6 0
5 5
4 2
3 10
2 8
1 9

So, 13-16 digits seems valid?

Last edited 9 months ago by Klumbumbus (previous) (diff)

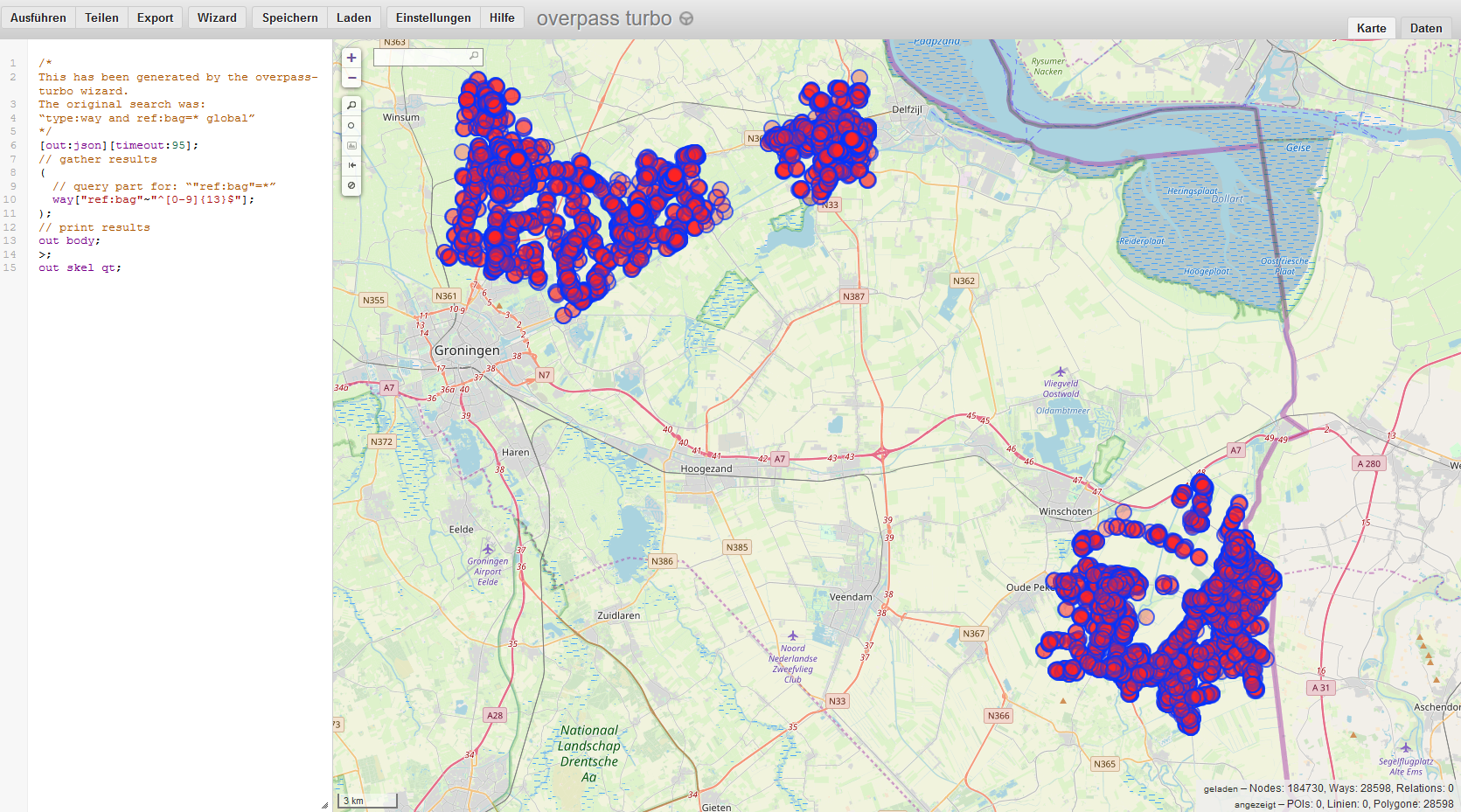

Changed 9 months ago by Klumbumbus

Attachment: 15158_13_digit.PNG added

comment:11 Changed 9 months ago by de_vries

@Klumbumbus 13-16 digits seems right. Anyway, your analysis seems more thorough than my knowledge.

comment:12 Changed 9 months ago by Klumbumbus

Resolution: fixed
Status: newclosed

comment:13 Changed 9 months ago by de_vries

@Klumbumbus Thanks for fixing this, I really appreciate it!

comment:14 Changed 9 months ago by Klumbumbus

You're welcome :)

comment:15 Changed 2 months ago by de_vries

With the merging of Tag2Link into the core and the switch to obtaining the rules from wikidata the ref:bag feature broke. It was somewhat fixable by editing wikidata and the data entry of the ref:bag osm wiki page.

But the formatting issue with the leading zeros that I mentioned above still remains.

comment:16 Changed 2 months ago by Klumbumbus

Cc: simon04 added

comment:17 Changed 2 months ago by simon04

Cc: nyurik added

Sorry for the regression. I see two ways to tackle this problem:

  1. Find a way on Wikidata / OSM Wiki Wikibase to deal with leading zeros for the formatter URL – maybe @nyurik can help here?
  2. Hard-code ref:bag in the Java source Tag2Link.java

comment:18 Changed 7 weeks ago by simon04

Milestone: 20.02
Resolution: fixed
Status: closedreopened

I started a discussion on OSM wiki: Special:Diff/1958215

comment:19 Changed 7 weeks ago by simon04

Resolution: fixed
Status: reopenedclosed

In 15881/josm:

fix #15158 - Tag2Link: leading zeros for ref:bag
