#24764 new defect

Area mapcss, datalayer, gives white background when not selected in Layers

Reported by: Allroads Owned by: team
Priority: normal Milestone:
Component: Core mappaint Version: tested
Keywords: mapcss Cc:

Description (last modified by Allroads)

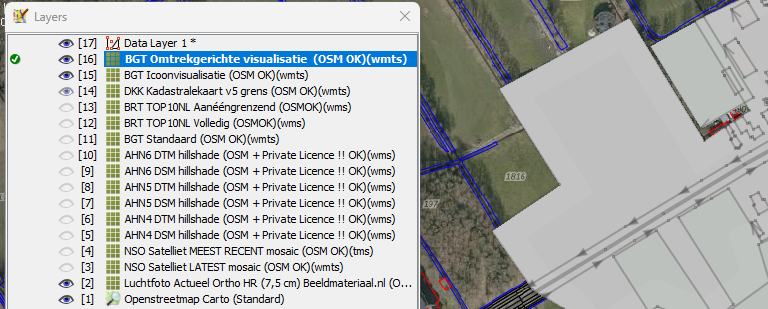

When I do not select the Data Layer 1, but other backgrounds in Layers (green icon). I get all area as white in this Data Layer 1. ( or grey if the mouseposition is not on the map)

I only have area| in the style to visualise, I was trying to visualise area landuse landcover etc. with only svg images.

This code gives the problem. ( this is a small part of the code.)

/****************************/
/* NATURAL                 */
/****************************/
/* text */
area|z27-[natural]::area_natural_base_text_layer {
	z-index: -9;
	fill-opacity:1;
	fill-image: natural_1024_text.svg;
}
/****************************/
/* Natural GRASSLAND */
/****************************/
area|z17[natural=grassland]::area_natural_layer {
	z-index: -7;
	fill-opacity:1;
	fill-image: natural_grassland_32.svg;
}

Then I set fill-opacity:1; to 0, this solved the problem. Now the white is not visible.

	fill-opacity:0;

But when I delete fill-opacity: lines totaly the problem is back.

So I must set fill-opacity:0; but then I do not see the area image svg.

Uploaden data, and green icon is set, on the Data Layer 1, layer active.
When not set to set fill-opacity:0; to 1 or line deleted, the uploading proces gives also these grey background change.

Here is the online file and info about the area visualisation.
link info

Is this correct or a problem? For me a problem not seeing the images.


With |27- I visualise a svg image legend layer. (text)

Attachments (1)


Download all attachments as: .zip

Change History (3)

by Allroads, 4 days ago

Attachment: areajosmgrey.png added

comment:1 by Allroads, 4 days ago

Description: modified (diff)

changed url

comment:2 by Allroads, 3 days ago

Description: modified (diff)

changed original post, because not seeing image.
