Node icons are gone/replaced by a white box

[jengelh@…]

Observed:

natural=tree is represented with a white box icon. [JOSM-tested 18907]

Expected:

natural=tree is represented with a gray tree-like icon. [Last known good version: JOSM-tested 18822]

/etc/os-release:

NAME="openSUSE Tumbleweed"
ID="opensuse-tumbleweed"
ID_LIKE="opensuse suse"
VERSION_ID="20231222"
java-17-openjdk-17.0.9.0-1.1.x86_64

[jengelh@…]

JOSM 18907

[jengelh@…]

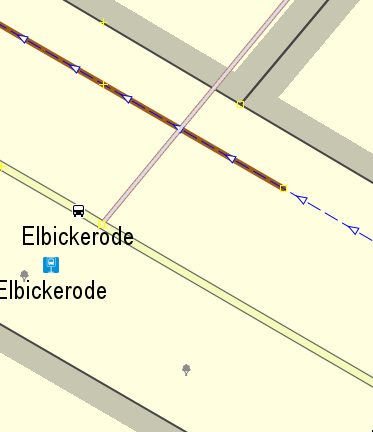

representation with the good JOSM version; location ​https://osm.org/#map=21/51.4353403/10.0642075

[stoecker]

Try reinstalling. Maybe something got corrupted on download. Doesn't happen here with the openSUSE package r18907 on Tumbleweed.

Reopen when still persisting. In this case add more information (e.g. how did you install the software, start it, ...).

[anonymous]

There is no "installation" that I could possibly do. It's just download-and-run.

Alas, found a tighter version range. Last known good:

$ java -jar josm-snapshot-18882.jar
2023-12-26 21:03:56.017 INFO: Log level is at INFO (INFO, 800)
2023-12-26 21:03:56.503 INFO: Detected usable IPv6 network, preferring IPv6 over IPv4.
2023-12-26 21:03:57.948 INFO: GET https://api.openstreetmap.org/api/0.6/user/details -> HTTP/1.1 200 (196 ms; 430 B)
2023-12-26 21:03:58.813 INFO: Obtained 82 Tag2Link rules from resource://META-INF/resources/webjars/tag2link/2022.11.28/index.json
2023-12-26 21:03:59.071 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).highway_track differ: [#006600, mappaint, JOSM default (MapCSS), highway_track] != [#6E541C, mappaint, JOSM default (MapCSS), highway_track]
2023-12-26 21:03:59.074 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).horse differ: [#C08000, mappaint, JOSM default (MapCSS), horse] != [#A18559, mappaint, JOSM default (MapCSS), horse]
2023-12-26 21:03:59.088 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).hotel differ: [#E1A0A2, mappaint, JOSM default (MapCSS), hotel] != [#FECED0, mappaint, JOSM default (MapCSS), hotel]
2023-12-26 21:03:59.091 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).quarry differ: [#888888, mappaint, JOSM default (MapCSS), quarry] != [#A6945B, mappaint, JOSM default (MapCSS), quarry]
2023-12-26 21:03:59.092 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).garages differ: [#F0F0F0, mappaint, JOSM default (MapCSS), garages] != [#D6C8AA, mappaint, JOSM default (MapCSS), garages]
2023-12-26 21:03:59.093 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).railland differ: [#888888, mappaint, JOSM default (MapCSS), railland] != [#80654E, mappaint, JOSM default (MapCSS), railland]
2023-12-26 21:04:00.724 INFO: loading plugin 'reverter' (version 36126)
2023-12-26 21:04:00.797 INFO: RemoteControl: adding command "revert_changeset" (handled by RevertChangesetHandler)
2023-12-26 21:04:00.799 INFO: loading plugin 'apache-commons' (version 36176)
2023-12-26 21:04:00.803 INFO: loading plugin 'jna' (version 36176)
2023-12-26 21:04:00.804 INFO: loading plugin 'gson' (version 35924)
2023-12-26 21:04:00.805 INFO: loading plugin 'apache-http' (version 36176)
2023-12-26 21:04:00.816 INFO: loading plugin 'utilsplugin2' (version 36178)
2023-12-26 21:04:00.877 INFO: loading plugin 'HouseNumberTaggingTool' (version 36178)
2023-12-26 21:04:00.883 INFO: loading plugin 'changeset-viewer' (version 0.0.7)
2023-12-26 21:04:00.887 INFO: loading plugin 'measurement' (version 36126)
2023-12-26 21:04:00.892 INFO: loading plugin 'continuosDownload' (version 103)
2023-12-26 21:04:00.899 INFO: loading plugin 'gridify' (version 1606242219)
2023-12-26 21:04:00.907 INFO: loading plugin 'OpeningHoursEditor' (version 36126)
2023-12-26 21:04:00.914 INFO: loading plugin 'undelete' (version 36126)
2023-12-26 21:04:00.933 INFO: loading plugin 'PicLayer' (version 1.0.3)
2023-12-26 21:04:00.960 INFO: Could not load tool definition splitway
2023-12-26 21:04:01.010 INFO: Message notifier active (checks every 600 minutes)
2023-12-26 21:04:01.020 INFO: Changeset updater active (checks every 60 minutes if open changesets have been closed)
2023-12-26 21:04:01.148 INFO: GET https://api.openstreetmap.org/api/0.6/user/details (get number of unread messages) -> HTTP/1.1 200 (71 ms; 430 B)
2023-12-26 21:04:02.422 INFO: GET https://api.openstreetmap.org/api/0.6/map?bbox=9.7478986,51.4329725,9.7482044,51.4330963 -> HTTP/1.1 200 (31 ms)
2023-12-26 21:04:02.559 SEVERE: Invalid or incomplete list property: [landuse, residential, name, Wietzertal, waterway, ditch, intermittent, yes, highway, track, surface, grass, layer, -1, tunnel, culvert, information, guidepost, inscription, Bruchgrund, inscription, Bruchsgrund, tourism, information, material, wood, place, locality, locality, field, name, Bruchsgrund, tracktype, grade5, barrier, fence, fence_type, metal, barrier, guard_rail, material, metal, landuse, grass, natural, grassland, man_made, street_cabinet, street_cabinet, power, allotments, plot, traffic_sign, DE:239,1022-10, 2022-06-10, traffic_sign, DE:239,1022-10,1022-30, motor_vehicle, destination]
2023-12-26 21:04:02.856 INFO: org.openstreetmap.josm.plugins.piclayer.actions.autocalibrate.AutoCalibratePictureAction has been created.
2023-12-26 21:04:02.910 INFO: org.openstreetmap.josm.plugins.piclayer.actions.autocalibrate.AutoCalibrateHandler has been created
BENCHMARK: rendering phase 1 (calculate styles): 12 ms; phase 2 (draw): 5 ms; total: 17 ms (scale: 1.440057778923336 zoom level: 23)
BENCHMARK: rendering phase 1 (calculate styles): 0 ms; phase 2 (draw): 1 ms; total: 1 ms (scale: 1.440057778923336 zoom level: 23)
2023-12-26 21:04:03.220 INFO: GET https://josm.openstreetmap.de/wiki/StartupPage -> HTTP/1.1 200 (5.1 s)
2023-12-26 21:04:03.701 INFO: Changeset updater inactive
2023-12-26 21:04:03.701 INFO: Message notifier inactive

First known bad:

$ java -jar josm-snapshot-18887.jar
2023-12-26 21:04:17.805 INFO: Log level is at INFO (INFO, 800)
2023-12-26 21:04:18.291 INFO: Detected usable IPv6 network, preferring IPv6 over IPv4.
2023-12-26 21:04:19.602 INFO: GET https://api.openstreetmap.org/api/0.6/user/details -> HTTP/1.1 200 (164 ms; 430 B)
2023-12-26 21:04:20.089 INFO: GET https://josm.openstreetmap.de/wiki/StartupPage -> HTTP/1.1 200 (294 ms)
2023-12-26 21:04:20.544 INFO: Obtained 82 Tag2Link rules from resource://META-INF/resources/webjars/tag2link/2022.11.28/index.json
2023-12-26 21:04:20.738 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).highway_track differ: [#006600, mappaint, JOSM default (MapCSS), highway_track] != [#6E541C, mappaint, JOSM default (MapCSS), highway_track]
2023-12-26 21:04:20.738 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).horse differ: [#C08000, mappaint, JOSM default (MapCSS), horse] != [#A18559, mappaint, JOSM default (MapCSS), horse]
2023-12-26 21:04:20.754 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).hotel differ: [#E1A0A2, mappaint, JOSM default (MapCSS), hotel] != [#FECED0, mappaint, JOSM default (MapCSS), hotel]
2023-12-26 21:04:20.756 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).quarry differ: [#888888, mappaint, JOSM default (MapCSS), quarry] != [#A6945B, mappaint, JOSM default (MapCSS), quarry]
2023-12-26 21:04:20.757 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).garages differ: [#F0F0F0, mappaint, JOSM default (MapCSS), garages] != [#D6C8AA, mappaint, JOSM default (MapCSS), garages]
2023-12-26 21:04:20.758 INFO: Defaults for clr.mappaint.JOSM default (MapCSS).railland differ: [#888888, mappaint, JOSM default (MapCSS), railland] != [#80654E, mappaint, JOSM default (MapCSS), railland]
2023-12-26 21:04:20.808 SEVERE: Failed to locate image 'dialogs/mappaint/pl2_small.png'
2023-12-26 21:04:20.810 WARNING: Mappaint style "standard" (Potlatch 2) icon "dialogs/mappaint/pl2_small.png" not found.
2023-12-26 21:04:22.378 INFO: loading plugin 'reverter' (version 36126)
2023-12-26 21:04:22.470 INFO: RemoteControl: adding command "revert_changeset" (handled by RevertChangesetHandler)
2023-12-26 21:04:22.471 INFO: loading plugin 'apache-commons' (version 36176)
2023-12-26 21:04:22.473 INFO: loading plugin 'jna' (version 36176)
2023-12-26 21:04:22.473 INFO: loading plugin 'gson' (version 35924)
2023-12-26 21:04:22.476 INFO: loading plugin 'apache-http' (version 36176)
2023-12-26 21:04:22.489 INFO: loading plugin 'utilsplugin2' (version 36178)
2023-12-26 21:04:22.565 INFO: loading plugin 'HouseNumberTaggingTool' (version 36178)
2023-12-26 21:04:22.570 INFO: loading plugin 'changeset-viewer' (version 0.0.7)
2023-12-26 21:04:22.573 INFO: loading plugin 'measurement' (version 36126)
2023-12-26 21:04:22.578 INFO: loading plugin 'continuosDownload' (version 103)
2023-12-26 21:04:22.584 INFO: loading plugin 'gridify' (version 1606242219)
2023-12-26 21:04:22.590 INFO: loading plugin 'OpeningHoursEditor' (version 36126)
2023-12-26 21:04:22.596 INFO: loading plugin 'undelete' (version 36126)
2023-12-26 21:04:22.612 INFO: loading plugin 'PicLayer' (version 1.0.3)
2023-12-26 21:04:22.629 INFO: Could not load tool definition splitway
2023-12-26 21:04:22.702 INFO: Message notifier active (checks every 600 minutes)
2023-12-26 21:04:22.705 INFO: Changeset updater active (checks every 60 minutes if open changesets have been closed)
2023-12-26 21:04:22.857 INFO: GET https://api.openstreetmap.org/api/0.6/user/details (get number of unread messages) -> HTTP/1.1 200 (76 ms; 430 B)
2023-12-26 21:04:24.762 INFO: Changeset updater inactive
2023-12-26 21:04:24.762 INFO: Message notifier inactive

pl2_small.png? Well, that's odd, since both archives have just a svg.

$ unzip -l josm-snapshot-18882.jar | grep pl2
      641  2023-10-30 03:31   images/dialogs/mappaint/pl2_small.svg
$ unzip -l josm-snapshot-18887.jar | grep pl2
      641  2023-10-31 03:31   images/dialogs/mappaint/pl2_small.svg

[jengelh@…]

Purged all the old .mss files that made it to ~/.josm one way or another
and re-hooked up the P2 style to point to https://josm.openstreetmap.de/josmfile?page=Styles/Potlatch2&zip=1 . All good now.

[stoecker]

Installation for openSUSE: Download.

That's also the reason why we ask for full report. It contains most of the relevant information (like the used style).
