#23229 new enhancement
JOSM-mapcss Limited Parent - Child selectors for nodes with OSM hierarchy relation, way, node
Reported by: | pierzen | Owned by: | team |
---|---|---|---|
Priority: | normal | Milestone: | |
Component: | Core | Version: | |
Keywords: | mapcss parent child selector | Cc: |
Description (last modified by )
JOSM-mapcss parent-child selectors could be enhanced to offer more possibilities to select/render nodes
With MapCSS, we can use a child selector which matches only if both the parent and the child object match.
- relation[type=route][route=foot] > way {...}
- way[natural] > node {...}
But there are restrictions that limit working with the OSM hierarchy Relation - Ways - Nodes.
with selectors that. It is not possible, for example, to select nodes for ways that are part of a [natural=water] relation if we define a selector to set a class. Similarly, it is not possible to create a selector for a node that is child of both a [natural=water] relation and a waterway way.
Examples
Nodes from ways part of a relation not selected
- relation[type=mutlipolygon][natural=water] > way {set .natural_relation;}
way.natural_relation > node {...} selects no node
Nodes from a way.class are not selected
- way[place=islet], way[place=island] {set .isl;}
way.isl > node {...} selects no node
What steps will reproduce the problem?
- open file natural-way-and-relation.osm
- Press F12 (Preference), select Mappaint button on the left, Select the + Button on the right to Add as active style the attached mapcss style natural_way_node_childs_selectors.mapcss
What is the expected result?
- Selection of way[natural], ways are rendered with casing-color:green
- Selection of ways from a relation[type=multipolygon][natural=water], ways are rendered with color:red.
- Selection of nodes from these ways, nodes are rendered with symbol-stroke-color:red.
What happens instead?
Trying to select both ways and nodes from a relation, ways are selected and colored appropriately but selector for nodes from the ways do not select and color the nodes part of these ways.
Trying to select both ways and nodes from a relation[type=multipolygon][natural=water], ways are rendered and colored as expected but it seems that they are processed as area. Node Child selectors from way.class > node do not select nodes and render them.
Please provide any additional information below.
Reproduce the problem
Load in JOSM the OSM file natural-way-and-relation.osm and the MAPCSS style
natural_way_node_childs_selectors.mapcss
Expected result
Relative:URL: ^/trunk Repository:UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b Last:Changed Date: 2023-08-29 13:38:40 +0200 (Tue, 29 Aug 2023) Revision:18822 Build-Date:2023-08-30 01:30:57 URL:https://josm.openstreetmap.de/svn/trunk Identification: JOSM/1.5 (18822 fr) Windows 10 64-Bit OS Build number: Windows 10 Pro 2009 (19045) Memory Usage: 325 MB / 1024 MB (127 MB allocated, but free) Java version: 17.0.1+12-LTS, Microsoft, OpenJDK 64-Bit Server VM Look and Feel: com.sun.java.swing.plaf.windows.WindowsLookAndFeel Screen: \Display0 1366×768 (scaling 1.00×1.00) Maximum Screen Size: 1366×768 Best cursor sizes: 16×16→32×32, 32×32→32×32 Environment variable LANG: fr Environment variable LC_ALL: fr.UTF8 System property file.encoding: Cp1252 System property sun.jnu.encoding: Cp1252 Locale info: fr_CA Numbers with default locale: 1234567890 -> 1234567890 Dataset consistency test: No problems found Plugins: + apache-commons (36034) + ejml (35924) + geotools (36068) + jackson (36034) + jaxb (36118) + jts (36004) + opendata (36126) + todo (133) + utilsplugin2 (36134) Map paint styles: - https://josm.openstreetmap.de/josmfile?page=Styles/Admin_Boundaries&zip=1 - https://josm.openstreetmap.de/josmfile?page=Styles/LayerChecker&zip=1 - d:\osm\mapcss\Health_Boundaries_v2d.mapcss - d:\osm\mapcss\test_class.mapcss - https://github.com/hotosm/HDM-JOSM-style/archive/master.zip - https://josm.openstreetmap.de/josmfile?page=Styles/HealthBoundary&zip=1 - https://josm.openstreetmap.de/josmfile?page=Styles/Fixme&zip=1 - https://josm.openstreetmap.de/josmfile?page=Styles/Highway_Nodes&zip=1 - https://github.com/osmlab/appledata/archive/josm_paint_inline_validation.zip - https://josm.openstreetmap.de/josmfile?page=Styles/LessObtrusiveNodes&zip=1 - https://github.com/MissingMaps/josm_styles/archive/master.zip - d:\osm\josm\way_nonodes.mapcss - https://josm.openstreetmap.de/josmfile?page=Styles/Coloured_buildings&zip=1 - https://raw.githubusercontent.com/OpenSeaMap/josm/master/INT1_Seamark.mapcss - https://www.openrailwaymap.org/styles/standard.zip - https://github.com/GlassOceanos/indoor-JOSM-style/archive/master.zip - https://josm.openstreetmap.de/josmfile?page=Styles/HealthBoundary&zip=1 - https://josm.openstreetmap.de/josmfile?page=Styles/Coloured_Streets&zip=1 + D:\osm\mapcss\natural_way_node_childs_selectors.mapcss - https://josm.openstreetmap.de/josmfile?page=Styles/Waterways&zip=1 Validator rules: - C:\Program Files (x86)\josm\plugins\FeaturesMajorTags.validator.mapcss Last errors/warnings: - 00001.557 W: extended font config - overriding 'filename.Myanmar_Text=mmrtext.ttf' with 'MMRTEXT.TTF' - 00001.560 W: extended font config - overriding 'filename.Mongolian_Baiti=monbaiti.ttf' with 'MONBAITI.TTF' - 00030.580 E: Skipping to the next rule, because of an error: org.openstreetmap.josm.gui.mappaint.mapcss.parsergen.ParseException: Encountered " ">" "> "" at line 37, column 42. - 00030.613 E: Skipping to the next rule, because of an error: org.openstreetmap.josm.gui.mappaint.mapcss.parsergen.ParseException: Encountered " "{" "{ "" at line 122, column 1. - 00030.657 E: Skipping to the next rule, because of an error: org.openstreetmap.josm.gui.mappaint.mapcss.parsergen.ParseException: Encountered " "{" "{ "" at line 167, column 1. - 00032.755 E: Impossible de trouver l'image "icons/water-color.png" - 00032.758 W: Mappaint style "standard" (colored waterways) icon "icons/water-color.png" not found.
Attachments (4)
Change History (11)
comment:1 by , 13 months ago
Description: | modified (diff) |
---|
comment:2 by , 13 months ago
Summary: | JOSM-mapcss does not return nodes from nested relation, way, child selectors → JOSM-mapcss does not return nodes from nested relation, way, node child selectors |
---|
comment:3 by , 13 months ago
Description: | modified (diff) |
---|---|
Owner: | changed from | to
Status: | new → needinfo |
by , 13 months ago
Attachment: | natural-way-and-relation.osm added |
---|
by , 13 months ago
Attachment: | natural_way_node_childs_selectors.mapcss added |
---|
by , 13 months ago

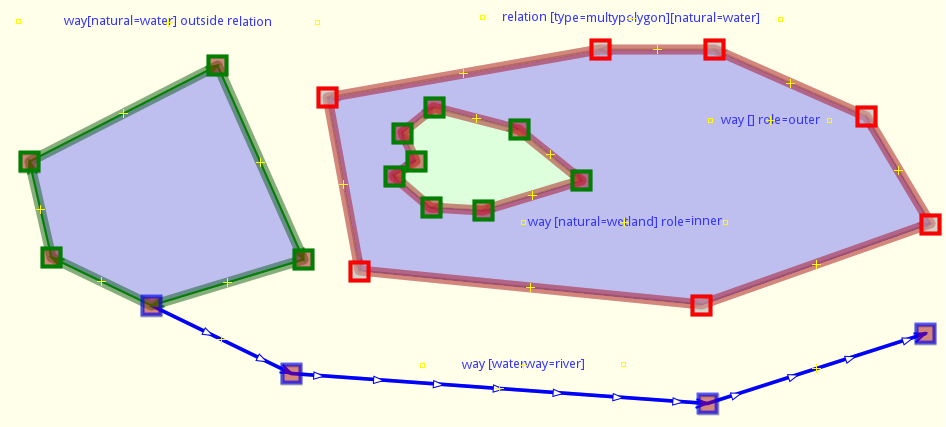

Attachment: | natural_way_node_childs_selectors_expected_results.png added |
---|
by , 13 months ago
Attachment: | natural_way_node_childs_selectors_reproduce_problem.png added |
---|
comment:4 by , 13 months ago
Description: | modified (diff) |
---|---|
Summary: | JOSM-mapcss does not return nodes from nested relation, way, node child selectors → JOSM-mapcss Limited Parent - Child selectors for nodes with OSM hierarchy relation, way, node |
comment:5 by , 13 months ago
Description: | modified (diff) |
---|
comment:6 by , 13 months ago
Owner: | changed from | to
---|---|
Status: | needinfo → new |
comment:7 by , 13 months ago
To say it more simply, I propose to have the ability to style nodes based on characteristics of grandparents,the relation. One more direct syntax for the selector could be formulated as relation[type=route][route=foot] > way > node {...}
Thanks for your report, however your ticket is incomplete and therefore not helpful in its current form.
Please add all needed information according to this list:
To ensure that all technical relevant information is contained, create new tickets by clicking in JOSMs Main Menu on Help → Report Bug.
Remember: This is a generic notice so we don't need to write the same stuff again and again. It may only apply in parts to the specific case!
Please attach the status report.
