#20462 closed defect (fixed)

Adding the background map of geoservices.bayern.de does not work.

Reported by: josua.braun@… Owned by: team
Priority: normal Milestone:
Component: External imagery source Version:
Keywords: template_report Cc:

Description

What steps will reproduce the problem?

  1. Go to the background image prefernces
  2. Look for: Bayern (80 cm) and add the map
  3. Download a data set inside Bavaria (Germany) and set the backgroud image to Bayern (80 cm)

What is the expected result?

A background image (aeria view) of from the Bayernatlas is shown.

What happens instead?

An error message is shown instead of the downloaded tiles:
"Fehler beim Herunterladen von Kacheln: javax.net.ssl.SSLHandshakeException:PKIX path building failed: sun.security.provider.certpath.SunCerPathBuilderException: unable to find valdid certification path to requested target. Ursache: sun.security.validator.ValidatorException:PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

Please provide any additional information below. Attach a screenshot if possible.

Relative:URL: ^/trunk
Repository:UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b
Last:Changed Date: 2020-12-28 22:03:23 +0100 (Mon, 28 Dec 2020)
Revision:17428
Build-Date:2020-12-29 02:30:53
URL:https://josm.openstreetmap.de/svn/trunk

Identification: JOSM/1.5 (17428 de) Linux Ubuntu 20.10
Memory Usage: 414 MB / 2966 MB (123 MB allocated, but free)
Java version: 11.0.9.1+1-Ubuntu-0ubuntu1.20.10, Ubuntu, OpenJDK 64-Bit Server VM
Look and Feel: javax.swing.plaf.metal.MetalLookAndFeel
Screen: :0.0 1920×1080 (scaling 1,00×1,00)
Maximum Screen Size: 1920×1080
Best cursor sizes: 16×16→16×16, 32×32→32×32
Desktop environment: KDE
Java package: openjdk-11-jre:amd64-11.0.9.1+1-0ubuntu1~20.10
Java ATK Wrapper package: libatk-wrapper-java:all-0.38.0-1
Environment variable LANG: de_DE.UTF-8
libcommons-logging-java: libcommons-logging-java:all-1.2-2
fonts-noto: fonts-noto:-
VM arguments: [--add-modules=java.scripting,java.sql, -Djosm.restart=true, -Djava.net.useSystemProxies=true]
Dataset consistency test: No problems found

Plugins:
+ reverter (35688)

Tagging presets:
+ https://josm.openstreetmap.de/josmfile?page=Presets/hiking_routes_with_trail_marking&zip=1

Last errors/warnings:
- 00419,589 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00419,628 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00419,654 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00419,844 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00420,274 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00420,353 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00420,657 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00421,067 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00421,139 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target
- 00421,270 W: javax.net.ssl.SSLHandshakeException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.validator.ValidatorException: PKIX path building failed: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target. Ursache: sun.security.provider.certpath.SunCertPathBuilderException: unable to find valid certification path to requested target

Attachments (2)

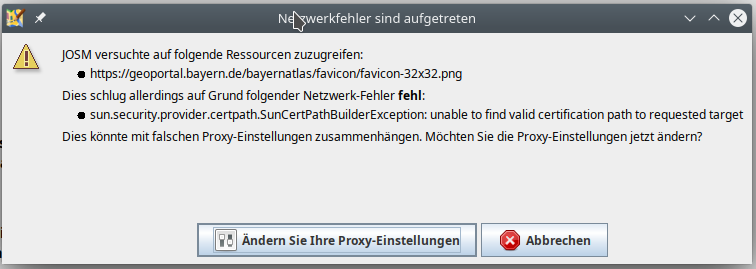

Error_1.png​ (32.9 KB ) - added by josua.braun@… 5 years ago.
During start, JOSM already complains about this source.
Error_2.png​ (13.6 KB ) - added by josua.braun@… 5 years ago.
Text shown instead of the background image.

Download all attachments as: .zip

Change History (3)

by josua.braun@…, 5 years ago

Attachment: Error_1.png​ added

During start, JOSM already complains about this source.

by josua.braun@…, 5 years ago

Attachment: Error_2.png​ added

Text shown instead of the background image.

comment:1 by josua.braun@…, 5 years ago

Resolution: → fixed
Status: new → closed

This issue was solved by adding the let's encrypt certificate to java:

https://josm.openstreetmap.de/ticket/16175#comment:8

​​https://letsencrypt.org/certificates/

$ keytool -import -noprompt -trustcacerts -alias x1 -file x1.pem -keystore /etc/ssl/certs/java/cacerts -storepass changeit
$ keytool -import -noprompt -trustcacerts -alias isrg -file isrg.pem -keystore /etc/ssl/certs/java/cacerts -storepass changeit
