#14282 closed defect (fixed)

NPE on saveSession

Reported by: wiktorn Owned by: team
Priority: normal Milestone: 17.01
Component: Core Version:
Keywords: template_report gpx heatmap Cc: kidelo

Description

What steps will reproduce the problem?

  1. I used only OSM data layers and WMS/WMTS layers.

What is the expected result?

What happens instead?

Please provide any additional information below. Attach a screenshot if possible.

URL:http://josm.openstreetmap.de/svn/trunk
Repository:UUID: 0c6e7542-c601-0410-84e7-c038aed88b3b
Last:Changed Date: 2017-01-22 21:57:07 +0100 (Sun, 22 Jan 2017)
Build-Date:2017-01-23 02:32:02
Revision:11488
Relative:URL: ^/trunk

Identification: JOSM/1.5 (11488 en) Windows 10 64-Bit
Memory Usage: 1026 MB / 1751 MB (402 MB allocated, but free)
Java version: 1.8.0_121-b13, Oracle Corporation, Java HotSpot(TM) 64-Bit Server VM
Screen: \Display0 2560x1440
Maximum Screen Size: 2560x1440
VM arguments: [-Djava.security.manager, -Djava.security.policy=file:<java.home>\lib\security\javaws.policy, -DtrustProxy=true, -Djnlpx.home=<java.home>\bin, -Djnlpx.origFilenameArg=%UserProfile%\AppData\LocalLow\Sun\Java\Deployment\cache\6.0\31\583aa85f-68319f41, -Djnlpx.remove=false, -Djava.util.Arrays.useLegacyMergeSort=true, -Djnlpx.splashport=65210, -Djnlp.application.href=https://josm.openstreetmap.de/download/josm-latest.jnlp, -Djnlpx.jvm=<java.home>\bin\javaw.exe, -Djnlpx.vmargs=LURqYXZhLnV0aWwuQXJyYXlzLnVzZUxlZ2FjeU1lcmdlU29ydD10cnVlAC1Eam5scC5hcHBsaWNhdGlvbi5ocmVmPWh0dHBzOi8vam9zbS5vcGVuc3RyZWV0bWFwLmRlL2Rvd25sb2FkL2pvc20tbGF0ZXN0LmpubHAA]
Dataset consistency test: No problems found

Plugins:
+ apache-commons (32994)
+ ejml (32680)
+ geotools (33042)
+ jts (32699)
+ opendata (33088)
+ utilsplugin2 (33088)

Validator rules:
+ https://raw.githubusercontent.com/zibik/adresy_walidator/master/polskie_adresy.mapcss

Last errors/warnings:
- W: Update plugins - org.openstreetmap.josm.plugins.PluginHandler$UpdatePluginsMessagePanel[,0,0,0x0,invalid,layout=java.awt.GridBagLayout,alignmentX=0.0,alignmentY=0.0,border=,flags=9,maximumSize=,minimumSize=,preferredSize=]
- E: org.openstreetmap.josm.io.OsmApiException: ResponseCode=403, Error Body=<<h1>Forbidden</h1>Rejected request from RFC1918 IP to public server address>
- E: Authorisation Failed - <html>Authorisation at the OSM server with the OAuth token 'X4KOmplyuCze09mp1lBa9endzEdukyWfzfS3zNt6' failed.<br>The token is not authorised to access the protected resource<br>'http://osm.vink.pl/tst/granice/1805052.osm'.<br>Please launch the preferences dialog and retrieve another OAuth token.</html>
- W: Unable to get color from '' for color preference 'extrude.main.line'
- W: Unable to get color from '' for color preference 'improve.way.accuracy.helper.line'
- W: Unable to get color from '' for color preference 'make.parallel.helper.line'
- E: Handled by bug report queue: java.lang.NullPointerException


=== REPORTED CRASH DATA ===
BugReportExceptionHandler#handleException:
No data collected.

Warning issued by: BugReportExceptionHandler#handleException

=== STACK TRACE ===
Thread: AWT-EventQueue-2 (59) of javawsApplicationThreadGroup
java.lang.NullPointerException
	at javax.swing.DefaultListCellRenderer.getListCellRendererComponent(Unknown Source)
	at javax.swing.plaf.basic.BasicComboBoxUI.getDisplaySize(Unknown Source)
	at javax.swing.plaf.basic.BasicComboBoxUI.getMinimumSize(Unknown Source)
	at com.sun.java.swing.plaf.windows.WindowsComboBoxUI.getMinimumSize(Unknown Source)
	at javax.swing.plaf.basic.BasicComboBoxUI.getPreferredSize(Unknown Source)
	at javax.swing.JComponent.getPreferredSize(Unknown Source)
	at org.openstreetmap.josm.gui.preferences.display.GPXSettingsPanel.lambda$initComponents$5(GPXSettingsPanel.java:284)
	at java.beans.PropertyChangeSupport.fire(Unknown Source)
	at java.beans.PropertyChangeSupport.firePropertyChange(Unknown Source)
	at java.beans.PropertyChangeSupport.firePropertyChange(Unknown Source)
	at java.awt.Component.firePropertyChange(Unknown Source)
	at javax.swing.JComponent.setBorder(Unknown Source)
	at javax.swing.LookAndFeel.installBorder(Unknown Source)
	at javax.swing.plaf.basic.BasicComboBoxUI.installDefaults(Unknown Source)
	at javax.swing.plaf.basic.BasicComboBoxUI.installUI(Unknown Source)
	at com.sun.java.swing.plaf.windows.WindowsComboBoxUI.installUI(Unknown Source)
	at javax.swing.JComponent.setUI(Unknown Source)
	at javax.swing.JComboBox.setUI(Unknown Source)
	at javax.swing.JComboBox.updateUI(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI0(Unknown Source)
	at javax.swing.SwingUtilities.updateComponentTreeUI(Unknown Source)
	at com.sun.java.swing.plaf.windows.DesktopProperty.updateWindowUI(Unknown Source)
	at com.sun.java.swing.plaf.windows.DesktopProperty.updateWindowUI(Unknown Source)
	at com.sun.java.swing.plaf.windows.DesktopProperty.updateAllUIs(Unknown Source)
	at com.sun.java.swing.plaf.windows.DesktopProperty.access$000(Unknown Source)
	at com.sun.java.swing.plaf.windows.DesktopProperty$1.run(Unknown Source)
	at java.awt.event.InvocationEvent.dispatch(Unknown Source)
	at java.awt.EventQueue.dispatchEventImpl(Unknown Source)
	at java.awt.EventQueue.access$500(Unknown Source)
	at java.awt.EventQueue$3.run(Unknown Source)
	at java.awt.EventQueue$3.run(Unknown Source)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.awt.EventQueue.dispatchEvent(Unknown Source)
	at java.awt.EventDispatchThread.pumpOneEventForFilters(Unknown Source)
	at java.awt.EventDispatchThread.pumpEventsForFilter(Unknown Source)
	at java.awt.EventDispatchThread.pumpEventsForFilter(Unknown Source)
	at java.awt.WaitDispatchSupport$2.run(Unknown Source)
	at java.awt.WaitDispatchSupport$4.run(Unknown Source)
	at java.awt.WaitDispatchSupport$4.run(Unknown Source)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.awt.WaitDispatchSupport.enter(Unknown Source)
	at java.awt.Dialog.show(Unknown Source)
	at javax.swing.JFileChooser.showDialog(Unknown Source)
	at javax.swing.JFileChooser.showSaveDialog(Unknown Source)
	at org.openstreetmap.josm.gui.widgets.SwingFileChooser.showSaveDialog(SwingFileChooser.java:106)
	at org.openstreetmap.josm.gui.widgets.FileChooserManager.openFileChooser(FileChooserManager.java:341)
	at org.openstreetmap.josm.gui.widgets.FileChooserManager.openFileChooser(FileChooserManager.java:323)
	at org.openstreetmap.josm.actions.DiskAccessAction.createAndOpenFileChooser(DiskAccessAction.java:115)
	at org.openstreetmap.josm.actions.SessionSaveAsAction.saveSession(SessionSaveAsAction.java:118)
	at org.openstreetmap.josm.actions.SessionSaveAsAction.actionPerformed(SessionSaveAsAction.java:81)
	at javax.swing.AbstractButton.fireActionPerformed(Unknown Source)
	at javax.swing.AbstractButton$Handler.actionPerformed(Unknown Source)
	at javax.swing.DefaultButtonModel.fireActionPerformed(Unknown Source)
	at javax.swing.DefaultButtonModel.setPressed(Unknown Source)
	at javax.swing.AbstractButton.doClick(Unknown Source)
	at javax.swing.plaf.basic.BasicMenuItemUI.doClick(Unknown Source)
	at javax.swing.plaf.basic.BasicMenuItemUI$Handler.mouseReleased(Unknown Source)
	at java.awt.AWTEventMulticaster.mouseReleased(Unknown Source)
	at java.awt.Component.processMouseEvent(Unknown Source)
	at javax.swing.JComponent.processMouseEvent(Unknown Source)
	at java.awt.Component.processEvent(Unknown Source)
	at java.awt.Container.processEvent(Unknown Source)
	at java.awt.Component.dispatchEventImpl(Unknown Source)
	at java.awt.Container.dispatchEventImpl(Unknown Source)
	at java.awt.Component.dispatchEvent(Unknown Source)
	at java.awt.LightweightDispatcher.retargetMouseEvent(Unknown Source)
	at java.awt.LightweightDispatcher.processMouseEvent(Unknown Source)
	at java.awt.LightweightDispatcher.dispatchEvent(Unknown Source)
	at java.awt.Container.dispatchEventImpl(Unknown Source)
	at java.awt.Window.dispatchEventImpl(Unknown Source)
	at java.awt.Component.dispatchEvent(Unknown Source)
	at java.awt.EventQueue.dispatchEventImpl(Unknown Source)
	at java.awt.EventQueue.access$500(Unknown Source)
	at java.awt.EventQueue$3.run(Unknown Source)
	at java.awt.EventQueue$3.run(Unknown Source)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.awt.EventQueue$4.run(Unknown Source)
	at java.awt.EventQueue$4.run(Unknown Source)
	at java.security.AccessController.doPrivileged(Native Method)
	at java.security.ProtectionDomain$JavaSecurityAccessImpl.doIntersectionPrivilege(Unknown Source)
	at java.awt.EventQueue.dispatchEvent(Unknown Source)
	at java.awt.EventDispatchThread.pumpOneEventForFilters(Unknown Source)
	at java.awt.EventDispatchThread.pumpEventsForFilter(Unknown Source)
	at java.awt.EventDispatchThread.pumpEventsForHierarchy(Unknown Source)
	at java.awt.EventDispatchThread.pumpEvents(Unknown Source)
	at java.awt.EventDispatchThread.pumpEvents(Unknown Source)
	at java.awt.EventDispatchThread.run(Unknown Source)

Attachments (3)

josm_14282_npe_on_save_session_by_kidelo.patch (1.9 KB) - added by kidelo 3 years ago.

Download all attachments as: .zip

Change History (12)

comment:1 Changed 3 years ago by Don-vip

Cc: kidelo added
Keywords: gpx heatmap added
Milestone: 17.01

colorTypeHeatMapTune seems to be null

comment:2 Changed 3 years ago by kidelo

  1. checked the exception trace, looks like colorTypeHeatMapTune is null. But it can not be, under normal normal circumstances.
      colorTypeHeatMapTune.addPropertyChangeListener(e -> {
              // get image size of environment
              final int iconSize = (int) colorTypeHeatMapTune.getPreferredSize().getHeight();
              // ask the GPX draw for the correct color of that layer
              final Color color = GpxDrawHelper.DEFAULT_COLOR.getChildColor(layerName != null ? layerName : "").get();
              colorTypeHeatIconLabel.setIcon(GpxDrawHelper.getColorMapImageIcon(color, colorTypeHeatMapTune.getSelectedIndex(), iconSize));
          });

  1. I tried to reproduce the problem on my win7, but is not reproduceable currently with latest version. It test the following combinations:
    • 1x data layer -> ok
    • 1x data layer + bing -> ok
    • 1x data layer + bing + 1x gpx -> ok
    • 3x data layer (same overlapping region) + bing + landsat + 2x gpx -> ok
  1. Found similar unexpected exception here, https://community.oracle.com/thread/1526330?start=0. Any idea ?

Can you provide more details, how to reproduce the problem.

Last edited 3 years ago by kidelo (previous) (diff)

comment:3 Changed 3 years ago by Klumbumbus

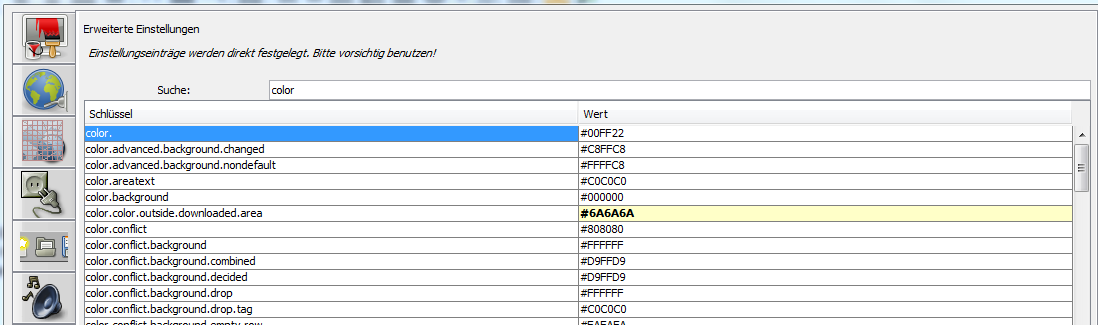

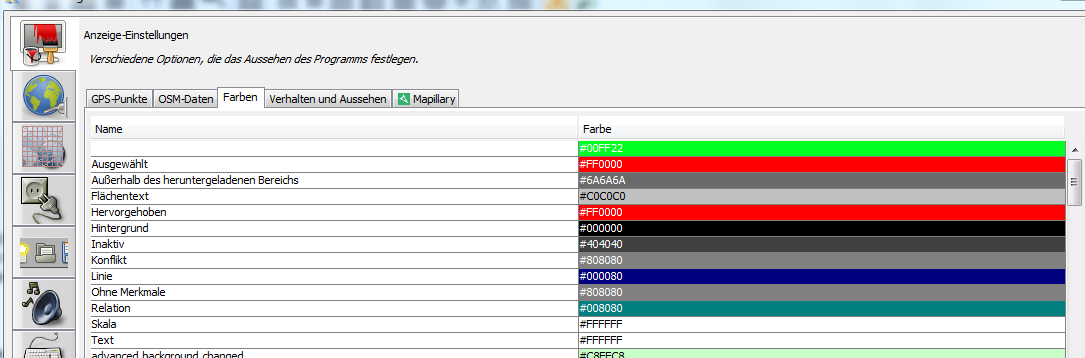

I don't know if this is related, but I have a color without name in my preferences (it has the same color like gps.point and seems to come from the gps heat map user setting):


Last edited 3 years ago by Klumbumbus (previous) (diff)

Changed 3 years ago by Klumbumbus

Attachment: EmptyColor1.png added

Changed 3 years ago by Klumbumbus

Attachment: EmptyColor2.png added

comment:4 in reply to:  2 Changed 3 years ago by Don-vip

Replying to kidelo:

  1. checked the exception trace, looks like colorTypeHeatMapTune is null.

I have spoken too fast, it can't be null as we enter the call to getPreferredSize()

comment:5 Changed 3 years ago by wiktorn

Resolution: othersoftware
Status: newclosed

I tried to reproduce this problem but I failed. It looks like this might be a problem inside Java, so maybe this is something inside 121 update. Though I noticed such problems only on 1 computer till now.

comment:6 Changed 3 years ago by wiktorn

And one thing (that was the reason I created the ticket) - any idea why showing the Save As dialog try to paint GPX Settings Panel? I didn't have this window open, so this looks like already JVM went astray...

comment:7 Changed 3 years ago by kidelo

Some news:

  1. Have changed portions of code for more robustness. The colorTypeHeatMapTune cannot be null in this context, but .getPreferredSize() can return a null pointer maybe.
  2. The observed new key "color." in list of defined colors was inserted by GPX heat map code when it has ask for the default color. This was a bug. I have changed the implementation to avoid this.

comment:8 Changed 3 years ago by kidelo

Resolution: othersoftware
Status: closedreopened

comment:9 Changed 3 years ago by Don-vip

Resolution: fixed
Status: reopenedclosed

In 11508/josm:

fix #14282 - add robustness to GPX settings panel (patch by kidelo)
